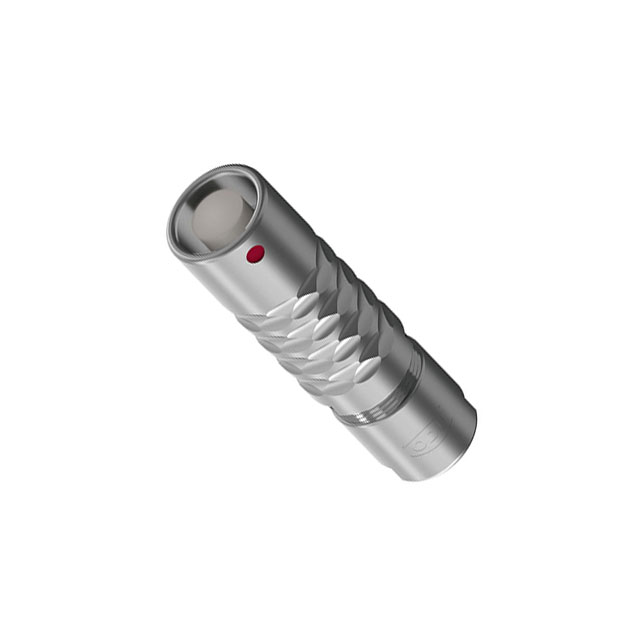

K1CL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Contact Finish - Mating | Number of Positions | Shielding | Connector Type | Backshell Material, Plating | Fastening Type | Shell Size - Insert | Orientation | Features | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Ingress Protection | Insert Material | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shell Finish | Current Rating (Amps) | Color | Contact Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 4 | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 2 mm | 1.5 mm | 0.079 " | 0.059 " | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |
Gold | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 3 mm | 2.5 mm | 0.118 " | 0.098 in | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |||
Gold | 4 | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 1.5 mm | 1 mm | 0.059 in | 0.039 in | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |
Gold | 2 | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 2 mm | 1.5 mm | 0.079 " | 0.059 " | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |
Gold | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 0.098 in 2.5 mm | 0.079 in 2 mm | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |||||
Gold | 4 | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 1 mm | 0.5 mm | 0.039 in | 0.02 in | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | |
Gold | 2 | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 0.098 in 2.5 mm | 0.079 in 2 mm | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | ||||
Gold | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 1.5 mm | 1 mm | 0.059 in | 0.039 in | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | ||
Gold | Shielded | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal | ||
Gold | 4 | Receptacle Female Sockets | Brass Chrome over Nickel | Push-Pull | 00 | 0 | Backshell | Free Hanging (In-Line) | 0.098 in 2.5 mm | 0.079 in 2 mm | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Chrome over Nickel | 4 A | Silver | Brass | Metal |
