3223W Series

Catalog

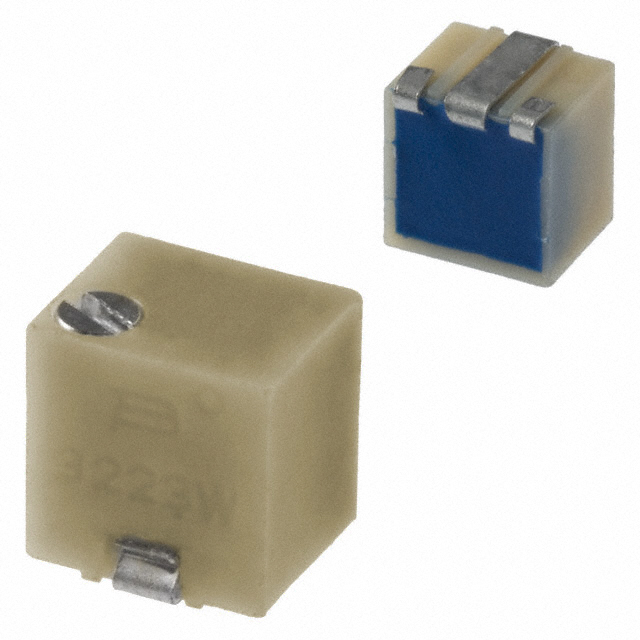

RES CERMET TRIMMER 50K OHM 20% 0.125W(1/8W) 11(ELEC)TURN (3.9 X 3.52 X 4.16MM) J-HOOK SMD TUBE

Part	Temperature Coefficient	Number of Turns	Adjustment Type	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Tolerance	Resistive Material	Resistance	Mounting Type
Bourns Inc. 3223W-1-503	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	50000 Ohms	Surface Mount
Bourns Inc. 3223W-1-102	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	1000 Ohms	Surface Mount
Bourns Inc. 3223W-1-504	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet		Surface Mount
Bourns Inc. 3223W-1-205	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	2 MOhms	Surface Mount
Bourns Inc. 3223W-1-103	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	10000 Ohms	Surface Mount
Bourns Inc. 3223W-1-503E	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	50000 Ohms	Surface Mount
Bourns Inc. 3223W-1-203E	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	20 kOhms	Surface Mount
Bourns Inc. 3223W-1-202	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	2 kOhms	Surface Mount
Bourns Inc. 3223W-1-103E	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	10000 Ohms	Surface Mount
Bourns Inc. 3223W-1-201E	100 ppm/°C	11	Top Adjustment	J Lead	0.154 "	3.18 mm	0.125 "	3.9 mm	0.125 W	0.125 W	20 %	Cermet	200 Ohms	Surface Mount
