PHN.1F Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Shell Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Fastening Type	Insert Material	Material Flammability Rating	Orientation	Shell Size - Insert	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening	Cable Opening	Shell Finish	Termination	Shielding	Applications	Connector Type	Color	Mounting Type	Number of Positions	Shell Size - Insert [custom]
LEMO PHN.1F.303.XLM	Aluminum Alloy	Bronze	-15 °C	200 °C	Gold	IP67 - Dust Tight Waterproof	12 Amps	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	N (Normal)	303	Metal	1.5 Ám	59 Áin	10.7 mm	0.421 in	Nickel	Crimp	Shielded	Aerospace	Receptacle Female Sockets	Gray	Free Hanging (In-Line)
LEMO PHN.1F.308.XLM	Aluminum Alloy	Bronze	-15 °C	200 °C	Gold	IP67 - Dust Tight Waterproof	5 A	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	N (Normal)	308	Metal	1.5 Ám	59 Áin	10.7 mm	0.421 in	Nickel	Crimp	Shielded	Aerospace	Receptacle Female Sockets	Gray	Free Hanging (In-Line)	8
LEMO PHN.1F.307.XLM	Aluminum Alloy	Bronze	-15 °C	200 °C	Gold	IP67 - Dust Tight Waterproof	7 A	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	N (Normal)		Metal	1.5 Ám	59 Áin	10.7 mm	0.421 in	Nickel	Crimp	Shielded	Aerospace	Receptacle Female Sockets	Gray	Free Hanging (In-Line)	7	307

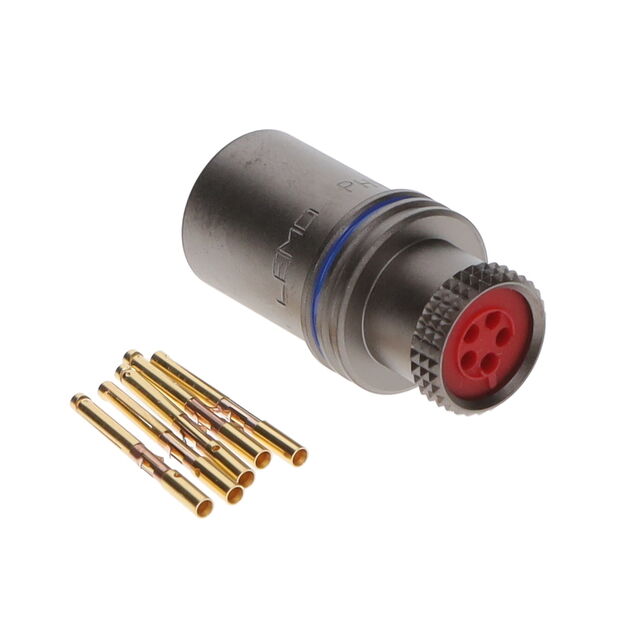

LEMO PHN.1F.305.XLM	Aluminum Alloy	Bronze	-15 °C	200 °C	Gold	IP67 - Dust Tight Waterproof	9 A	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	N (Normal)	305	Metal	1.5 Ám	59 Áin	10.7 mm	0.421 in	Nickel	Crimp	Shielded	Aerospace	Receptacle Female Sockets	Gray	Free Hanging (In-Line)	5
