179188 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

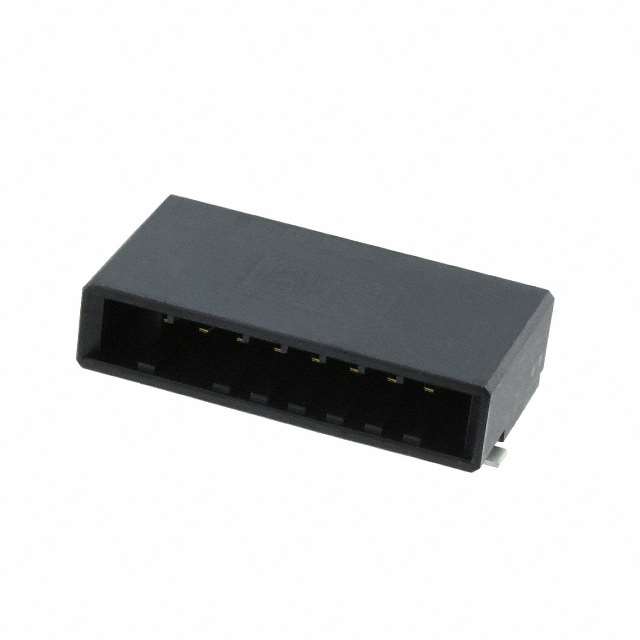

CONN HEADER SMD R/A 8POS 3.81MM
| Part | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Features | Connector Type | Number of Positions | Contact Type | Insulation Color | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Shrouding | Number of Rows | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Material | Termination | Applications | Style | Mounting Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Shape | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 250 VDC | 15 µin | 0.38 µm | All | Solder Retention | Header | 8 | Tab | Black | UL94 V-0 | 105 ░C | -55 °C | Glass Filled Polyester Thermoplastic | Shrouded - 4 Wall | 1 | Gold PdNi +Gold | 0.455 in | 11.56 mm | Copper Alloy | Solder | General Purpose Industrial | Board to Board Cable | Surface Mount Right Angle | Tin | 3.81 mm | 0.15 in | Rectangular | Detent Lock |
