051441 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 20POS 0.5MM R/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector/Contact Type	FFC, FCB Thickness	Mounting Type	Cable End Type	Contact Finish	Contact Material	Locking Feature	Actuator Material	Number of Positions	Material Flammability Rating	Housing Material	Height Above Board [z]	Height Above Board [z]	Actuator Color	Pitch [x]	Pitch [x]	Mating Cycles	Flat Flex Type	Termination	Housing Color	Features	Voltage Rating
Molex 0514412072	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Gold	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	20	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V

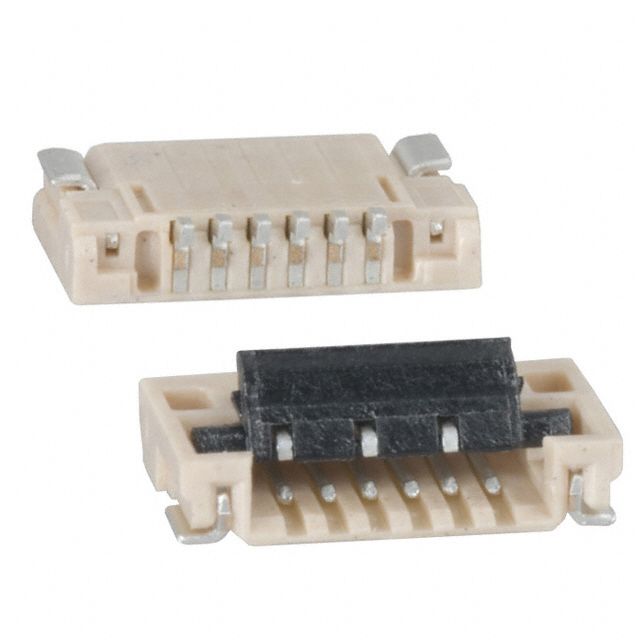

Molex 0514410693	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	6	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
Molex 0514410872	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Gold	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	8	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V

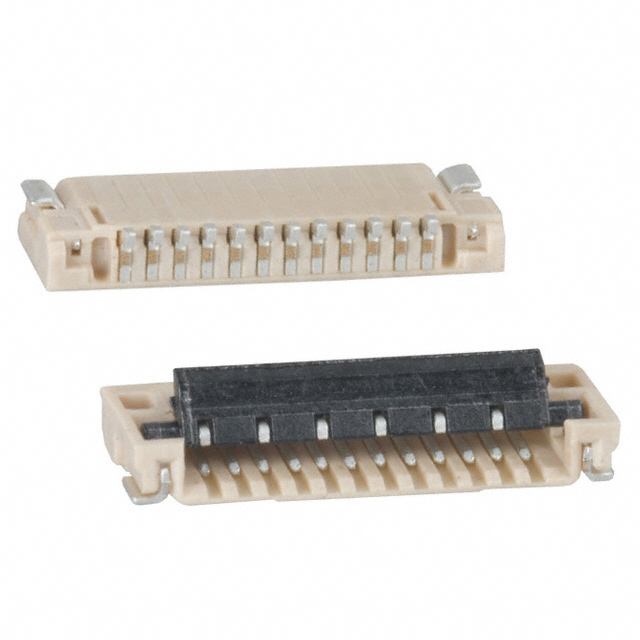

Molex 0514411293	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	12	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
Molex 0514411272	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Gold	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	12	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
Molex 0514411393	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	13	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V

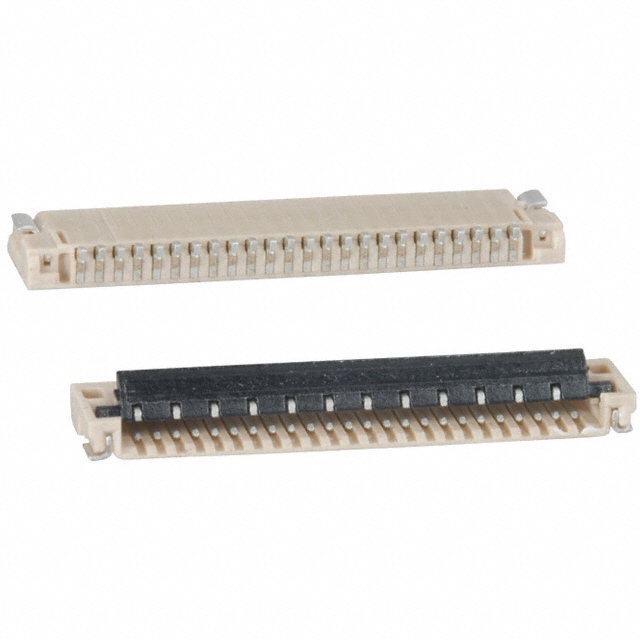

Molex 0514412493	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	24	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
Molex 0514411793	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled		UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V

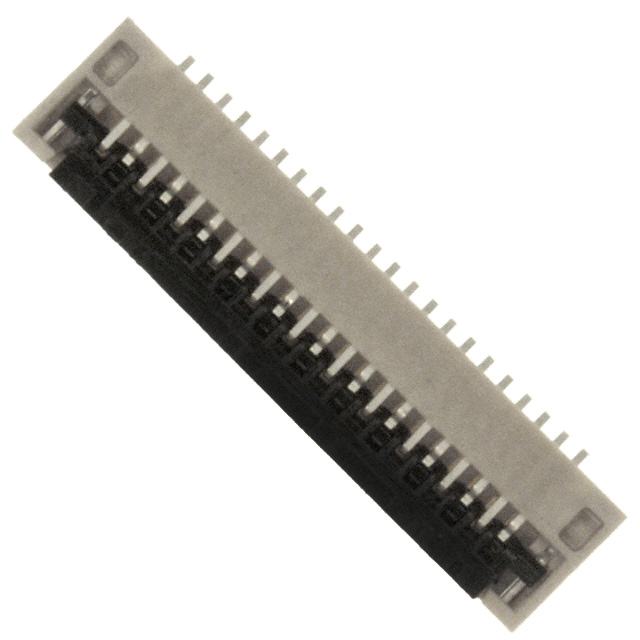

Molex 0514412293	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	22 positions	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
Molex 0514411193	85 °C	-20 C	0.5 A	Contacts Bottom	0.3 mm	Surface Mount Right Angle	Straight Tapered	Tin Bismuth	Phosphor Bronze	Flip Lock	Polyphenylene Sulfide (PPS) Glass Filled	11	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	1.12 mm	0.044 in	Black	0.5 mm	0.02 in	20	FFC FPC	Solder	Beige	Solder Retention Zero Insertion Force (ZIF)	50 V
