6355 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

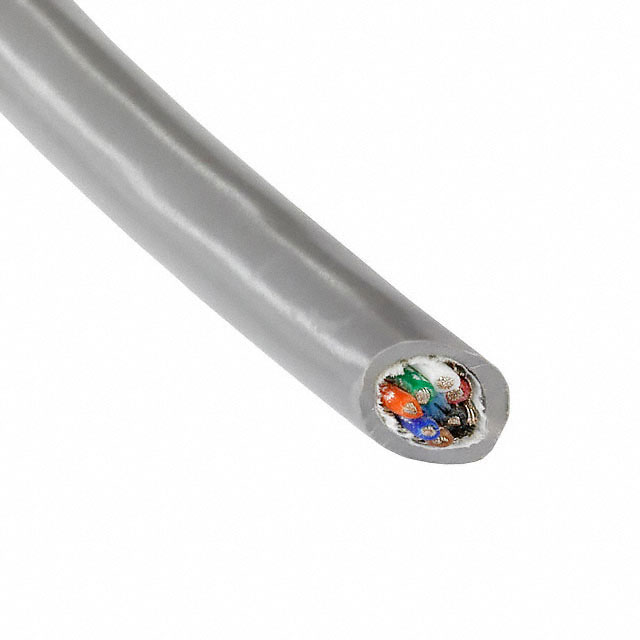

MULTICONDUCTOR CABLE, SHIELDED, 7 CONDUCTOR, 24 AWG, 0.23 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Length | Length | Wire Gauge | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Number of Conductors | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | 24 AWG | Slate | 80 °C | -20 ░C | Copper Tinned | 6.73 mm | 0.265 in | Multi-Conductor | 7 | 32 AWG | Drain Wire | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 0.035 in | 0.889 mm | 300 VDC | 7 | UL Style 2919 |
