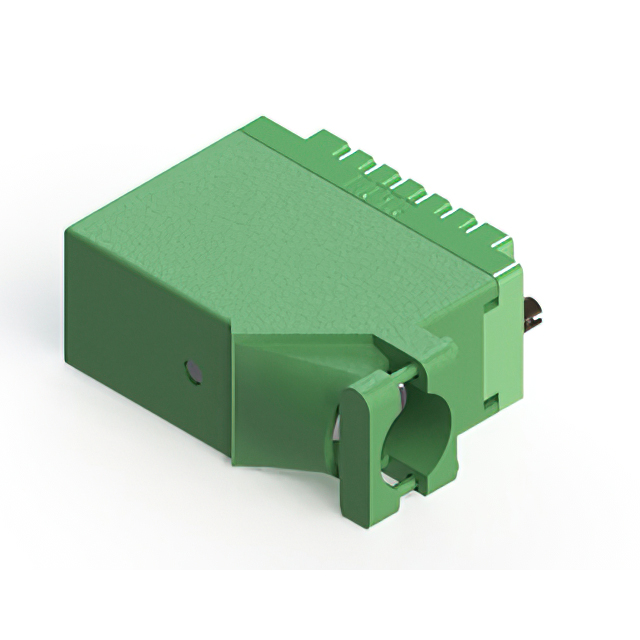

516-090 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

RACK & PANEL CONNECTOR ROHS COMPLIANT: YES

...

Part	Note	Connector Usage	Number of Rows	Number of Positions	Features	Mounting Type	Connector Type	Pitch	Pitch	Connector Style	Color
EDAC Inc. 516-090-520-562	Contacts Not Included	Plug	13	90	Backshell Guide Pin Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Green

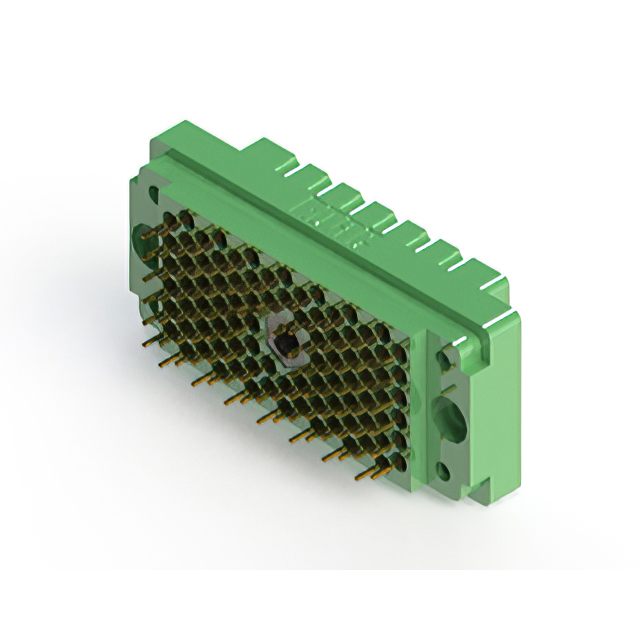

EDAC Inc. 516-090-520-206	Contacts Not Included	Receptacle	13	90	Jackscrew Socket		Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Green

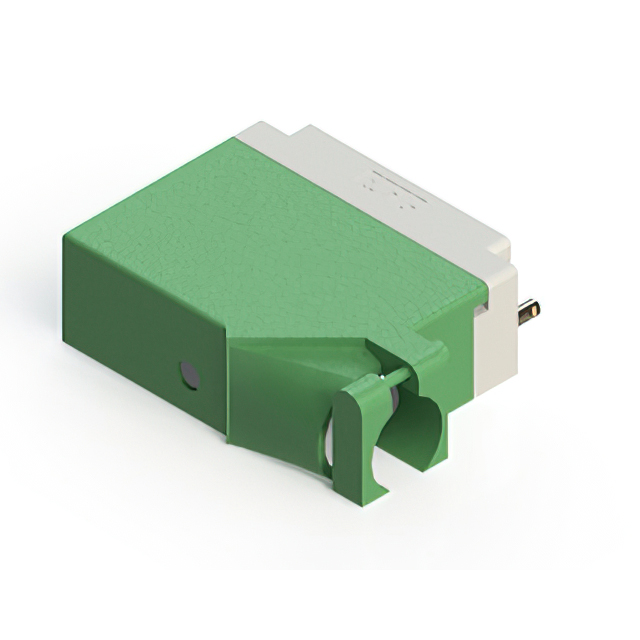

EDAC Inc. 516-090-541-322	Contacts Not Included	Plug	13	90	Backshell Guide Pin Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray

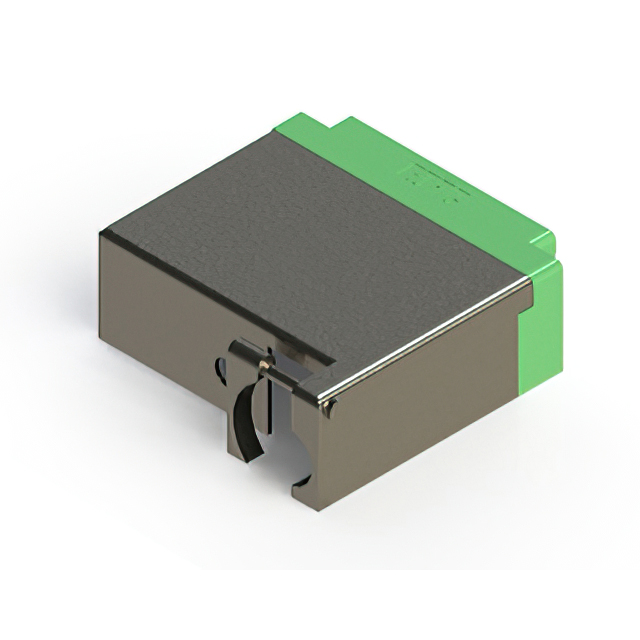

EDAC Inc. 516-090-500-560	Contacts Not Included	Plug	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Green

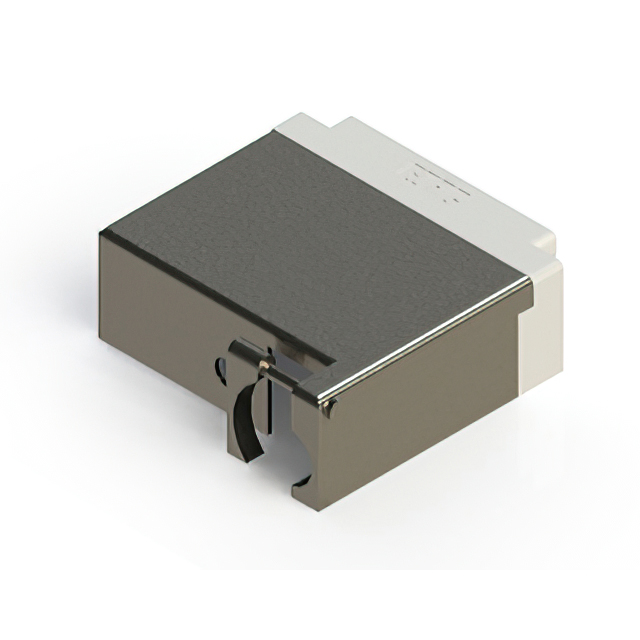

EDAC Inc. 516-090-541-360	Contacts Not Included	Plug	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray

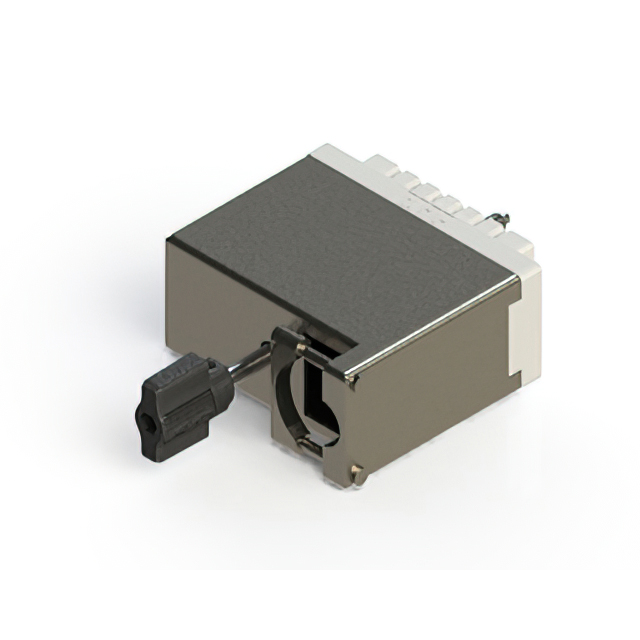

EDAC Inc. 516-090-541-465	Contacts Not Included	Receptacle	13	90	Backshell Jackscrew	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-520-306	Contacts Not Included	Plug	13	90	Jackscrew Socket		Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray

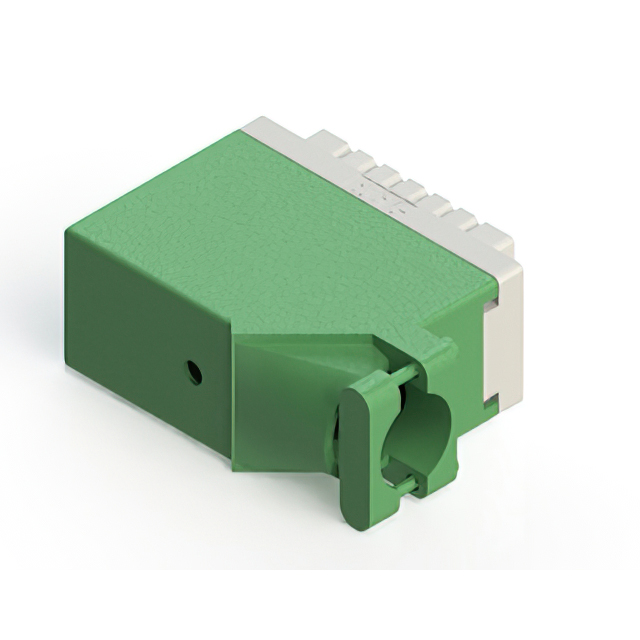

EDAC Inc. 516-090-542-420	Contacts Not Included	Receptacle	13	90	Backshell	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray

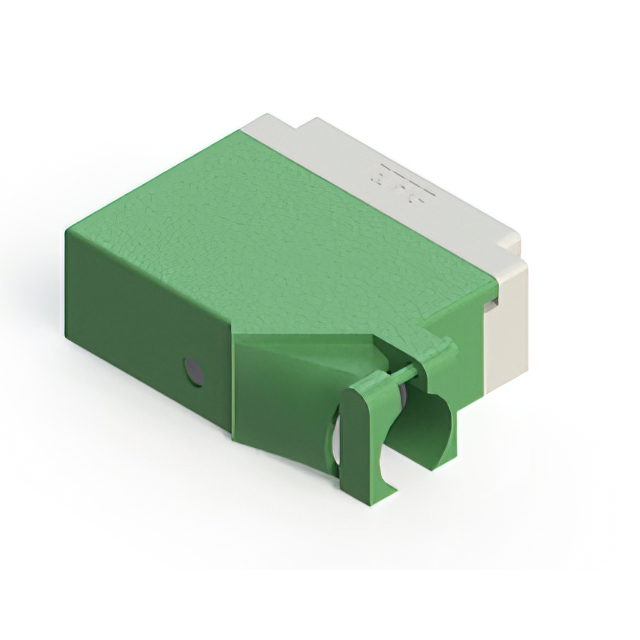

EDAC Inc. 516-090-542-326	Contacts Not Included	Plug	13	90	Backshell Jackscrew Socket	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray
EDAC Inc. 516-090-542-355	Contacts Not Included	Plug	13	90	Backshell Jackscrew	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	3.81 mm	0.15 in	Rack and Panel	Gray
