ECS-T0 Series

Catalog

CAP TANT 47UF 20% 6.3V 1411

Part	Package / Case	Package / Case	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Features	Capacitance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

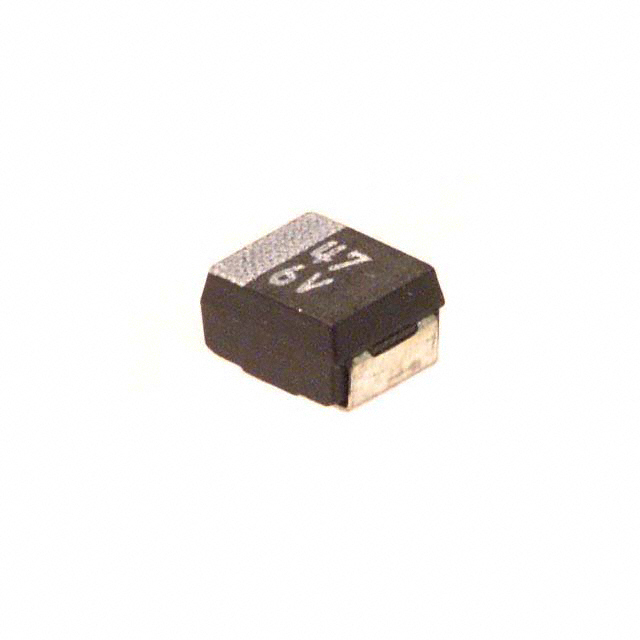

Panasonic Electronic Components ECS-T0JX476R	3528 Metric	1411	Surface Mount	Molded	-55 C	125 °C	1.9 mm	0.075 "	X	General Purpose	47 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	6.3 VDC

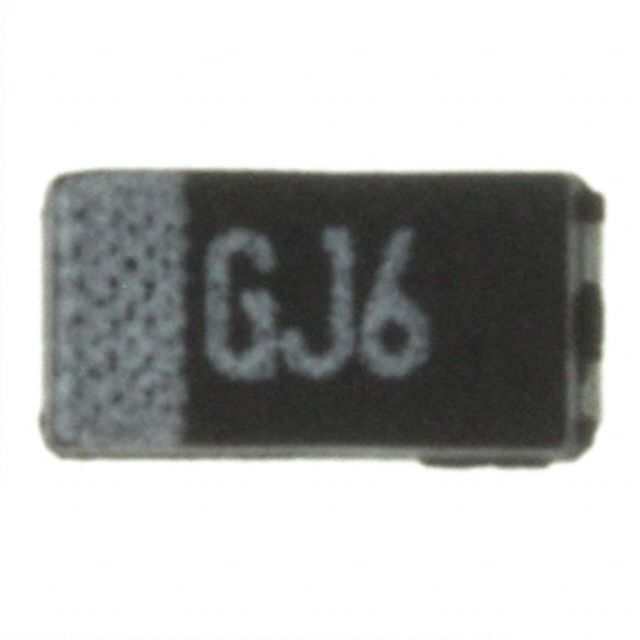

Panasonic Electronic Components ECS-T0GP225R		1206 (3216 Metric)	Surface Mount	Molded	-55 C	125 °C			P	General Purpose	2.2 µF	20 %	3.2 mm	0.063 "	1.6 mm	0.126 "	4 V	1.2 mm	0.047 "

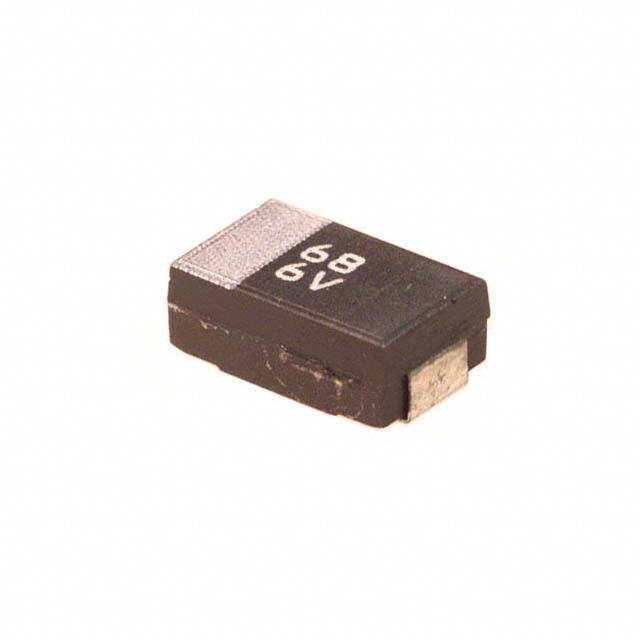

Panasonic Electronic Components ECS-T0JD686R		2917 (7343 Metric)	Surface Mount	Molded	-55 C	125 °C			D	General Purpose	68 µF	20 %	7.3 mm	0.169 "	4.3 mm	0.287 "	6.3 VDC

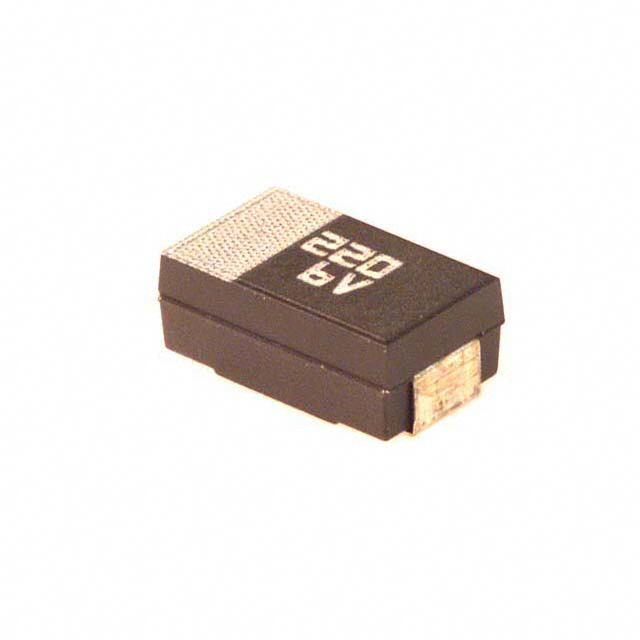

Panasonic Electronic Components ECS-T0JD227R		2917 (7343 Metric)	Surface Mount	Molded	-55 C	125 °C			D	General Purpose	220 µF	20 %	7.3 mm	0.169 "	4.3 mm	0.287 "	6.3 VDC
Panasonic Electronic Components ECS-T0JZ106R		0805	Surface Mount	Molded	-55 C	125 °C			Z	General Purpose	10 µF	20 %	2 mm	0.049 "	1.25 mm	0.079 in	6.3 VDC	1.2 mm	0.047 "
