GBC06S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Material	Number of Rows	Shrouding	Current Rating (Amps)	Insulation Color	Contact Material	Contact Shape	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Material Flammability Rating	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length

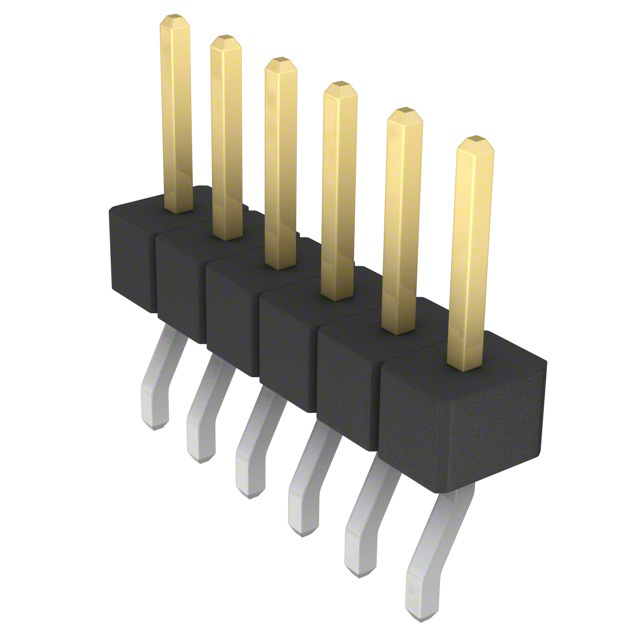

Sullins Connector Solutions GBC06SBSN-M89	2.54 µm	100 µin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	1	Unshrouded	3 A	Black	Phosphor Bronze	Square	Right Angle Surface Mount	150 °C	-65 ░C	Tin	UL94 V-0	Header Breakaway	0.23 in	5.84 mm	6	Push-Pull	0.1 "	2.54 mm	Male Pin	Gold	Solder	0.25 µm	10 µin	3.56 mm	0.14 in	All

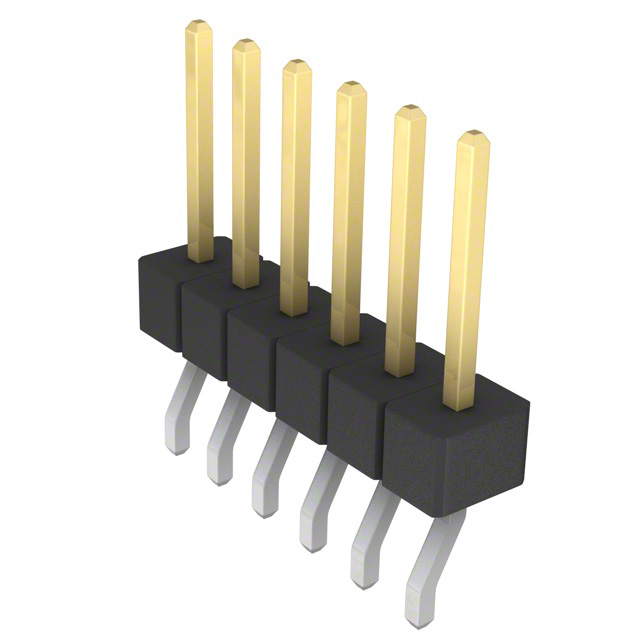

Sullins Connector Solutions GBC06SGSN-M89	2.54 µm	100 µin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	1	Unshrouded	3 A	Black	Phosphor Bronze	Square	Right Angle Surface Mount	150 °C	-65 ░C	Tin	UL94 V-0	Header Breakaway	0.318 in	8.08 mm	6	Push-Pull	0.1 "	2.54 mm	Male Pin	Gold	Solder	0.25 µm	10 µin	3.56 mm	0.14 in	All
Sullins Connector Solutions GBC06SFBN-M30	2.54 µm	100 µin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	1	Unshrouded	3 A	Black	Phosphor Bronze	Square	Surface Mount	150 °C	-65 ░C	Tin	UL94 V-0	Header Breakaway	0.318 in	8.08 mm	6	Push-Pull	0.1 "	2.54 mm	Male Pin	Gold	Solder	0.25 µm	10 µin	2.54 mm	0.1 in	All
Sullins Connector Solutions GBC06SAHN	2.54 µm	100 µin	Board to Board Cable	Nylon 9T Polyamide (PA9T)	1	Unshrouded	3 A	Black	Phosphor Bronze	Square	Through Hole	150 °C	-65 ░C	Tin	UL94 V-0	Header Breakaway	0.23 in	5.84 mm	6	Push-Pull	0.1 "	2.54 mm	Male Pin	Gold	Solder	0.25 µm	10 µin	2.54 mm	0.1 in	All	0.82 in	20.83 mm	29.21 mm	1.15 in
