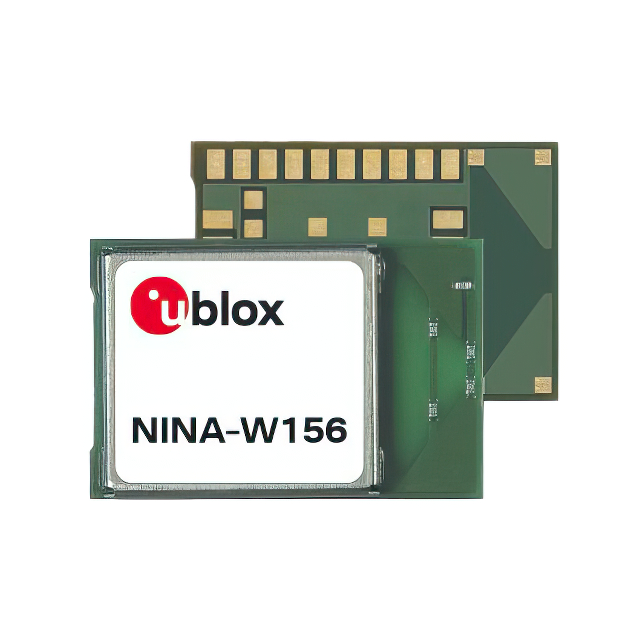

NINA-W156 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MOD BT WIFI PCB TH SMD
| Part | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Utilized IC / Part | Protocol | Frequency (Max) | Frequency (Min) | Modulation | Package / Case | Mounting Type | Current - Receiving (Max) | Current - Receiving (Min) | Sensitivity | Power - Output | Current - Transmitting (Min) | Current - Transmitting (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Data Rate | Antenna Type | Serial Interfaces | RF Family/Standard | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | Flash SRAM | 0.5 MB | 2 MB | ESP32 | 802.11b 802.11g 802.11n Bluetooth v4.2 | 2.5 GHz | 2.4 GHz | CCK DSSS GFSK OFDM QDPSK QPSK | 36-SMD Module | Surface Mount | 117 mA | 49 mA | -96 dBm | 15 dBm | 67 mA | 122 mA | 3.6 V | 3 V | 72 Mbps | PCB Trace | GPIO SPI UART | Bluetooth WiFi | -40 °C | 85 °C |
u-blox | Flash SRAM | 0.5 MB | 2 MB | ESP32 | 802.11b 802.11g 802.11n Bluetooth v4.2 | 2.48 GHz | 2.4 GHz | CCK DSSS OFDM | 36-SMD Module | Surface Mount | 125 mA | 110 mA | -96 dBm | 18 dBm | 120 mA | 170 mA | 3.6 V | 3 V | 54 Mbps | PCB Trace | SDIO SPI UART | Bluetooth General ISM > 1GHz WiFi | -40 °C | 85 °C |
