T520B Series

Manufacturer: KEMET

Catalog

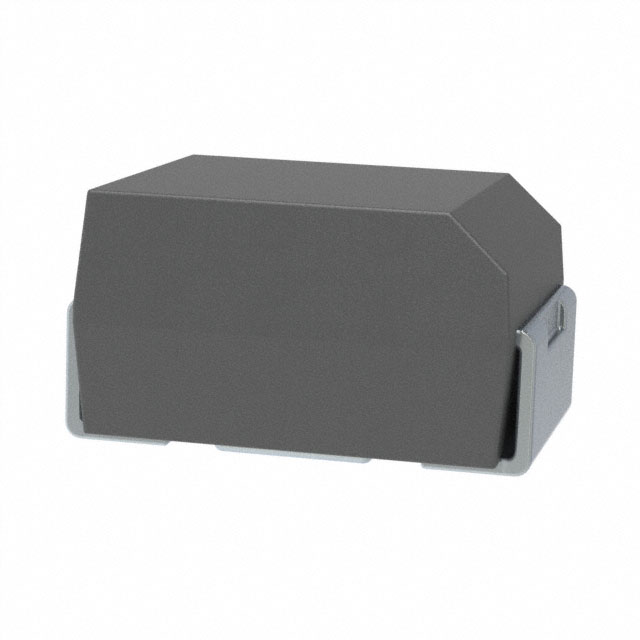

TANTALUM POLYMER CAPACITOR, KO-CAP®, 68 ΜF, ± 20%, 6.3 V, B, 0.07 OHM, 1411 [3528 METRIC]

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Lifetime @ Temp.	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Capacitance	ESR (Equivalent Series Resistance)	Manufacturer Size Code
KEMET T520B686M006ATE070	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	6.3 VDC	68 µF	70 mOhm	B
KEMET T520B107M004ATE035	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	4 V	100 µF	35 mOhm	B
KEMET T520B157M003ATE040	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	3 VDC	150 µF	40 mOhm	B
KEMET T520B476M010ATE035	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	10 V	47 µF	35 mOhm	B
KEMET T520B476M008ATE035	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	8 V	47 µF	35 mOhm	B
KEMET T520B336M010ATE040	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	10 V	33 ÁF	40 mOhm	B
KEMET T520B107M006ATE045	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	6.3 VDC	100 µF	45 mOhm	B
KEMET T520B107M2R5ATE070	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	2.5 V	100 µF	70 mOhm	B
KEMET T520B157M004ATE040	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	4 V	150 µF	40 mOhm	B
KEMET T520B336M006ATE040	3.5 mm	0.11 "	2.8 mm	0.138 in	Molded	2000 Hrs	Surface Mount	20 %	-55 C	105 ░C	General Purpose	3528 Metric	1411	0.079 in	2 mm	6.3 VDC	33 ÁF	40 mOhm	B
