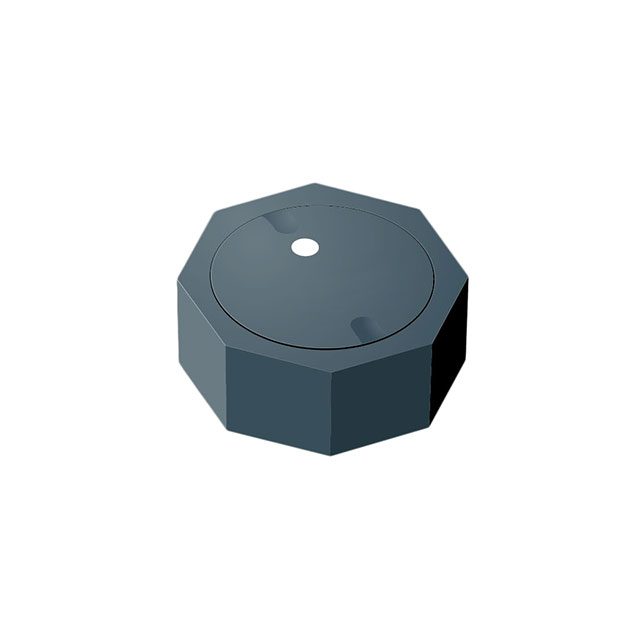

SRU1063A Series

Catalog

INDUCTOR, AEC-Q200, 10UH, 3.8A, 30%

Part	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Shielding	Q @ Freq	Package / Case	Frequency - Self Resonant	Current Rating (Amps)	Ratings	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Material - Core	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SRU1063A-100Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded	2.52 MHz 14	4-SMD	18 MHz	3.8 A	AEC-Q200	100 kHz	18 mOhm	4 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	10 µH	125 °C	-40 C
Bourns Inc. SRU1063A-150Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded		4-SMD	14 MHz	3.2 A	AEC-Q200	100 kHz	42 mOhm	3.4 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	15 µH	125 °C	-40 C	12	2.52 MHz
Bourns Inc. SRU1063A-680Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded	2.52 MHz 8	4-SMD	5 MHz	1.2 A	AEC-Q200	100 kHz	210 mOhm	1.35 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	68 µH	125 °C	-40 C
Bourns Inc. SRU1063A-4R7Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded	7.96 MHz 11	4-SMD	30 MHz	5.5 Amps	AEC-Q200	100 kHz		5.7 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	4.7 ÁH	125 °C	-40 C			14 mOhm
Bourns Inc. SRU1063A-470Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded		4-SMD	6 MHz	1.4 A	AEC-Q200	100 kHz		1.6 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	47 µH	125 °C	-40 C	10		150 mOhm	2.52 MHz
Bourns Inc. SRU1063A-6R8Y	Drum Core Wirewound	0.268 "	6.8 mm	30 %	Shielded	7.96 MHz 11	4-SMD	20 MHz	5.2 A	AEC-Q200	100 kHz	18 mOhm	5.2 A	0.394 in	0.394 in	10 mm	10 mm	Surface Mount	Ferrite	6.8 µH	125 °C	-40 C
