XW5T-S4 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
FUSETBKNIFEEDGDISCNT4MM6.3A
| Part | Material - Insulation | Material Flammability Rating | Stripping Length | Voltage - UL | Type | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Number of Positions | Voltage - IEC | Disconnect Type | Number of Levels | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - IEC | Terminal - Width [y] | Fuse Type | Color | Termination Style | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

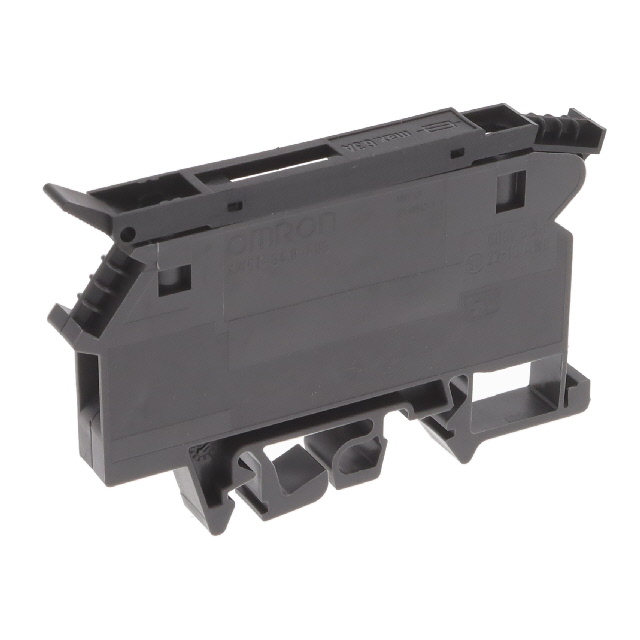

 Omron Automation and Safety | Nylon Polyamide (PA) | UL94 V-0 | 8 mm | 600 V | Disconnect | 6 mm² | 0.5 mm² | 2 | 800 V | Fuse Lever | 1 | 22 AWG | 10 AWG | 6.3 A | 8 mm | 5mm x 20mm 5mm x 25mm 5mm x 30mm | Gray | Screw | |||

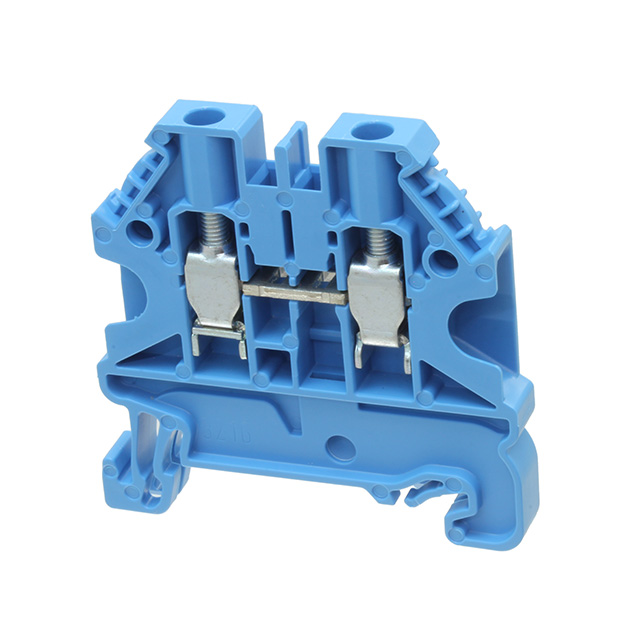

 Omron Automation and Safety | Nylon Polyamide (PA) | UL94 V-0 | 9 mm | 600 V | Feed Through | 6 mm² | 0.14 mm² | 2 | 1 kV | 1 | 26 AWG | 10 AWG | 32 A | 6 mm | Blue | Screw | 6 mm˛ | 0.14 mm˛ | 30 A |
