Q5-3X-1/4 Series

Manufacturer: Qualtek

Catalog

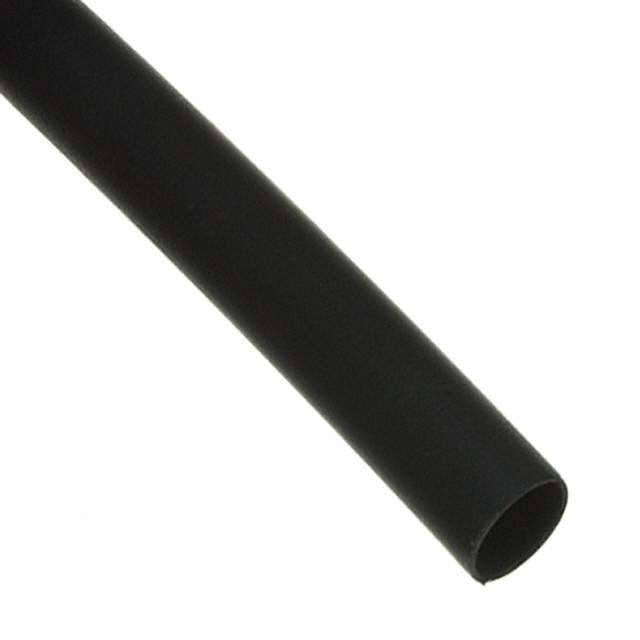

HEATSHRINK 0.236" X 4' BLK 1=1PC

Part	Shrinkage Ratio	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Type	Shrink Temperature	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Length
Qualtek Q5-3X-1/4-01-QB48IN-25	3 to 1	-55 C	125 °C	4 ft	1.22 m	60 Months	40 °C	14 °F	-50 °F	40 °C	Black	Tubing Flexible	80 °C	Adhesive Lined Flame Retardant	0.99 mm	0.039 in	0.236 in	5.99 mm	Polyolefin (PO)	2.03 mm	0.08 in
Qualtek Q5-3X-1/4-01-QB6IN-20	3 to 1	-55 C	125 °C			60 Months	40 °C	14 °F	-50 °F	40 °C	Black	Tubing Flexible	80 °C	Adhesive Lined Flame Retardant	0.99 mm	0.039 in	0.236 in	5.99 mm	Polyolefin (PO)	2.03 mm	0.08 in	152.4 mm	0.5 '	6 "
