78383 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

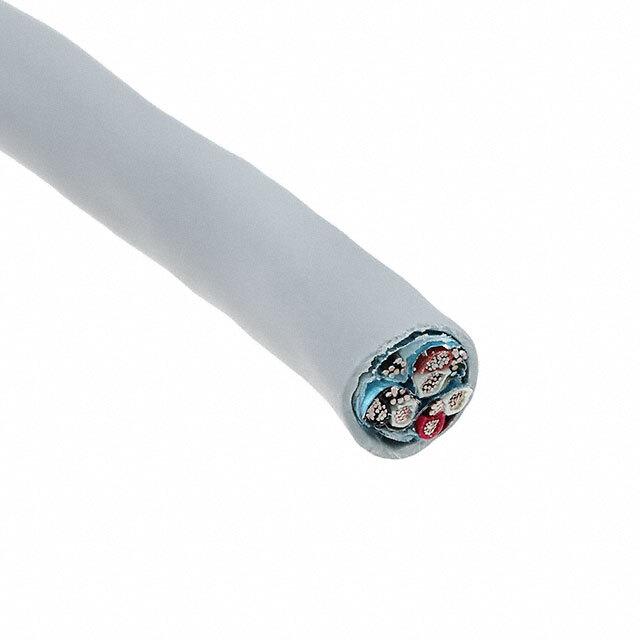

ECOGEN ECOCABLE MINI 22AWG 3PR 300V FOIL/BRAID MPPE 78383 SL 199 BULK FT
| Part | Conductor Material | Length | Length | Conductor Strand [custom] | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Features | Conductor Insulation | Shield Type | Cable Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Voltage | Shield Coverage | Wire Gauge | Shield Material | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 1 ft | 300 mm | 19 Strands | 34 AWG | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Braid Foil | Multi-Pair | 5.79 mm | 0.228 in | 6 | -40 °C | 80 C | Polyphenylene Ether Modified (mPPE) | 300 V | 100 % | 22 AWG | Copper Tinned Suprashield® | Slate | ||
ALPHA WIRE | Copper Tinned | 19 Strands | 34 AWG | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Braid Foil | Multi-Pair | 5.79 mm | 0.228 in | 6 | -40 °C | 80 C | Polyphenylene Ether Modified (mPPE) | 300 V | 100 % | 22 AWG | Copper Tinned Suprashield® | Slate | 30.5 m | 100 ft |
