SG3225EAN Series

Manufacturer: EPSON

Catalog

SG3225EAN 212.500000M-KJGA0: XTA

Part	Current - Supply (Disable) (Max) [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency Stability	Base Resonator [custom]	Type	Function	Mounting Type

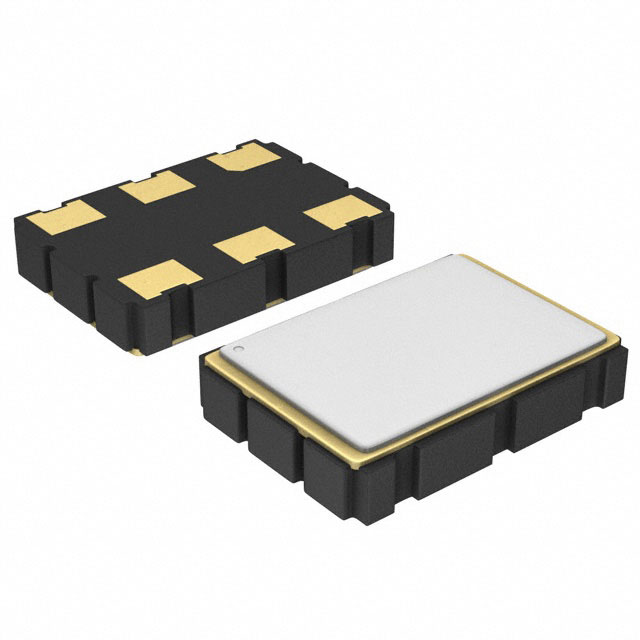

EPSON SG3225EAN 212.500000M-KJGA0	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	212.5 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 125.000000M-KJGA0	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	125 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 75.000000M-KJGA6	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	75 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 75.000000M-KJGA0	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	75 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 114.285000M-KEGA6		3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	114.285 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	30 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 150.000000M-KEGAB	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	150 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	30 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 156.250000M-KCBA6	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	70 °C	-20 ░C	65 mA	156.25 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	20 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 212.500000M-KEGA6	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	212.5 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	30 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 125.000000M-KJGA6	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	125 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
EPSON SG3225EAN 133.330000M-KJGA6	20 mA	3.2	2.5	6-SMD	1.2 mm	0.047 "	2.5 V	3.3 V	LVPECL	6-SMD No Lead	85 °C	-40 C	65 mA	133.33 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 ppm	Crystal	XO (Standard)	Enable/Disable	Surface Mount
