MIKQ7 Series

Catalog

CBL CIRC 19POS MALE TO WIRE 3'

Part	Cable Type	Shielding	Color	1st Connector Orientation	Length	Length	2nd Connector Type	1st Connector Gender	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Number of Positions	Assembly Configuration	Length [x]	Length [x]	Features	Contact Material	Primary Material	Contact Finish - Mating	Shell Finish	Mounting Type	Shell Material	Mounting Feature	Number of Positions	Current Rating (Amps)	Orientation	Insert Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Applications
ITT Cannon, LLC MIKQ7-19PH076	Individual	Unshielded	Multiple	Keyed	91.44 cm	3 ft	Wire Leads	Male Pins	Receptacle	All	Panel Mount	19	Standard

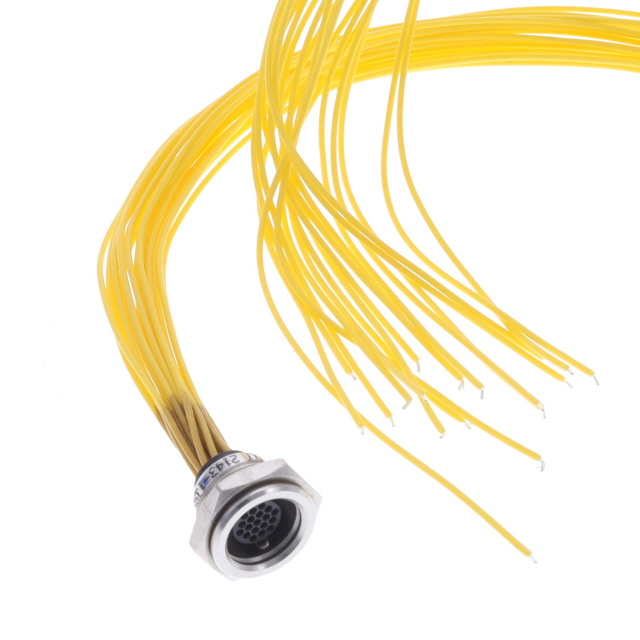

ITT Cannon, LLC MIKQ7-19PH001	Individual	Unshielded	Yellow	Keyed			Wire Leads	Male Pins	Receptacle	All	Panel Mount	19	Standard	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ7-7PH074	Individual	Unshielded	Multiple	Keyed			Wire Leads	Male Pins	Receptacle	All	Panel Mount	7	Standard	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ7-7PH020		Unshielded														Coupling Nut	Copper Alloy	Metal	Gold	Electroless Nickel	Panel Mount	Brass	Flange	7	3 A	Keyed	Thermoplastic	Wire Leads	-55 C	125 °C	Receptacle Male Pins	50 µin	1.27 µm	Push-Pull	Instrumentation Medical

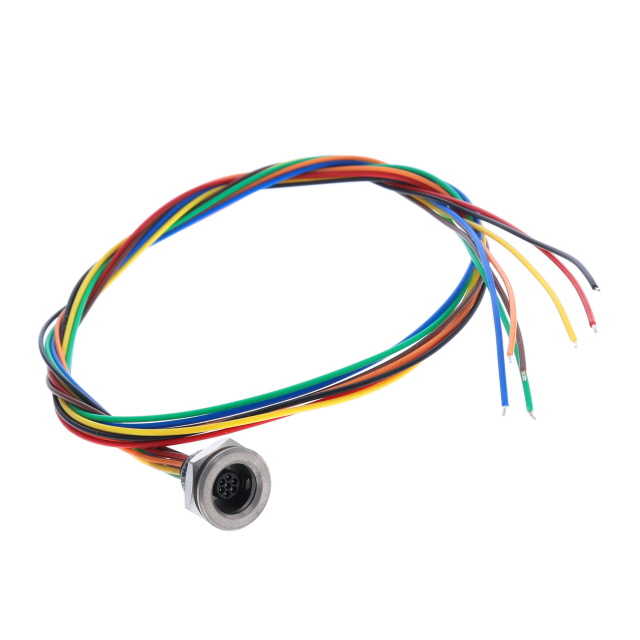

ITT Cannon, LLC MIKQ7-7PH003	Individual	Unshielded	Multiple	Keyed			Wire Leads	Male Pins	Receptacle	All	Panel Mount	7	Standard	457.2 mm	1.5 ft
ITT Cannon, LLC MIKQ7-7PH078	Individual	Unshielded	Multiple	Keyed	1.83 m	6 ft	Wire Leads	Male Pins	Receptacle	All	Panel Mount	7	Standard
ITT Cannon, LLC MIKQ7-37PH076	Individual	Unshielded	Multiple	Keyed	91.44 cm	3 ft	Wire Leads	Male Pins	Receptacle	All	Panel Mount	37	Standard
ITT Cannon, LLC MIKQ7-37PH048	Individual	Unshielded	Multiple	Keyed			Wire Leads	Male Pins	Receptacle	All	Panel Mount	37	Standard	1.22 m	4 ft

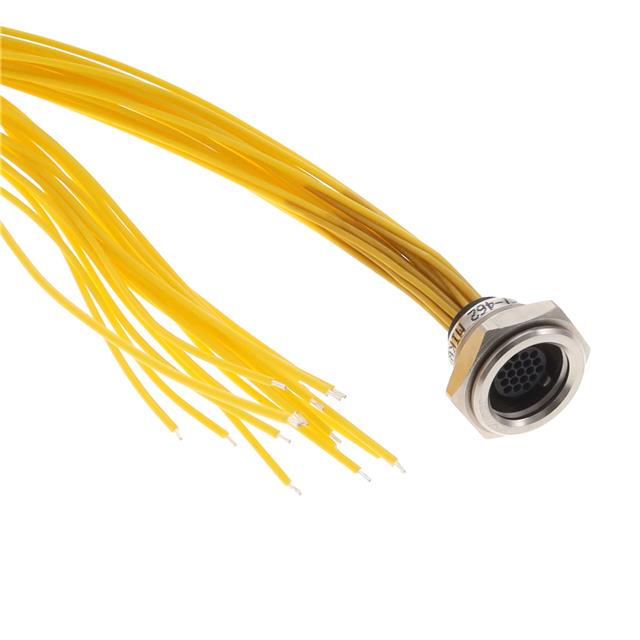

ITT Cannon, LLC MIKQ7-19PH011	Individual	Unshielded	Yellow		91.44 cm	3 ft	Wire Leads	Male Pins	Receptacle	All	Panel Mount	19	Standard

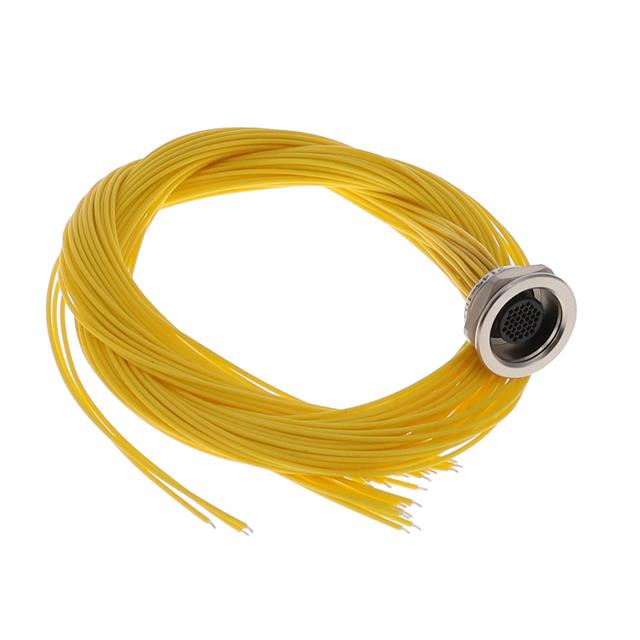

ITT Cannon, LLC MIKQ7-37PH001	Individual	Unshielded	Yellow	Keyed			Wire Leads	Male Pins	Receptacle	All	Panel Mount	37	Standard	457.2 mm	1.5 ft
