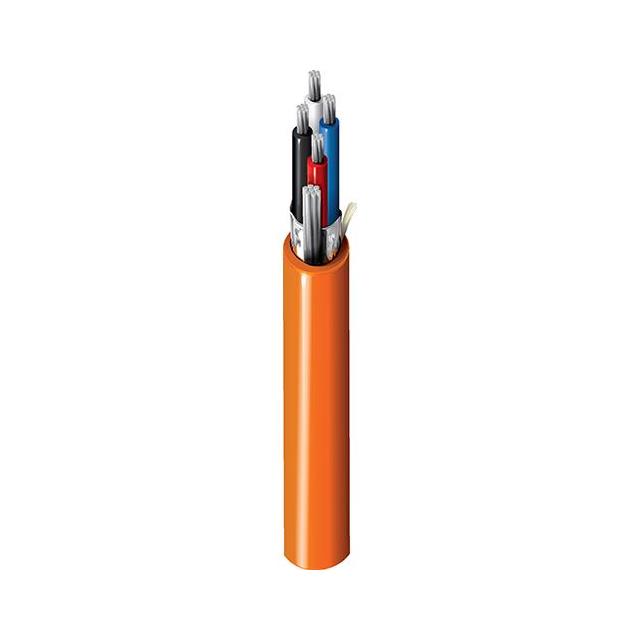

1337A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 3COND 18AWG
| Part | Shield Material | Shield Coverage | Shield Type | Features | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Insulation | Conductor Insulation | Voltage | Conductor Material | Jacket (Insulation) Material | Number of Conductors [custom] | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | Flame Retardant UV Resistant | Orange | 9.2 mm | 0.362 in | 18 AWG | 3048 m | 10000 ft | 26 AWG | 7 | 75 ░C | -30 ░C | Multi-Pair | Polyolefin | PO | 600 V | Copper Tinned | Poly-Vinyl Chloride (PVC) | 1.5 | 3 |
