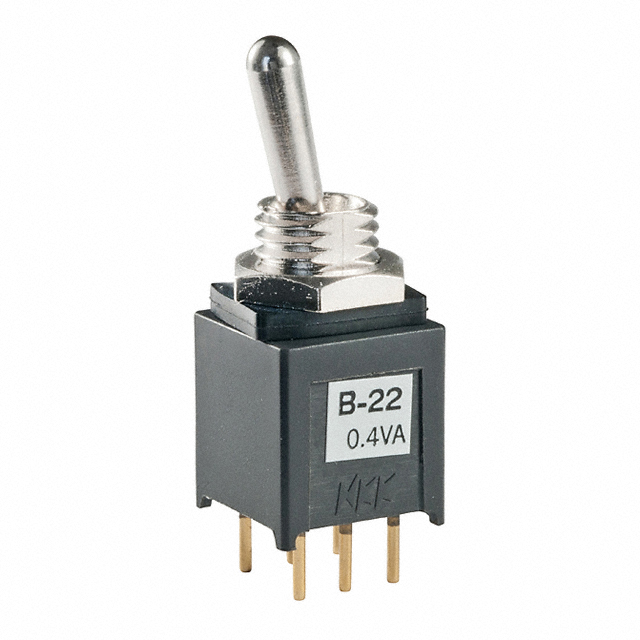

B22A1 Series
Manufacturer: NKK Switches
Beta
⌘K
TOGGLE SWITCH, ON-ON, DPDT, NON ILLUMINATED, 100 MA, PANEL MOUNT
| Part | Electrical Life | Actuator Material | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Bushing Thread | Bushing Thread | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Termination Style | Voltage Rating - DC | Actuator Type | Circuit | Voltage Rating - AC | Illumination | Actuator Length [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Nickel Plated | 0.4 VA | 6 mm | 0.75 | M6 | Panel Mount | 85 °C | -30 ░C | On-On | PC Pin | 28 V | Standard Round | DPDT | 28 V | Non-Illuminated | 8 mm | Epoxy Sealed Terminals |
