NCP702 Series

LDO Regulator, 200 mA, Ultra-Low Dropout, Ultra-Low Iq, High PSRR, Ultra-Low Noise

Catalog

LDO Regulator, 200 mA, Ultra-Low Dropout, Ultra-Low Iq, High PSRR, Ultra-Low Noise

Part	Channels per IC	Board Type	Regulator Type	Supplied Contents	Utilized IC / Part	Voltage - Output	Current - Output	Output Configuration	Package / Case	Supplier Device Package	Current - Quiescent (Iq)	Protection Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Mounting Type	Control Features	Number of Regulators	Output Type
ON Semiconductor NCP702SN33T1GEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	3.3 V	200 mA
ON Semiconductor NCP702SN28T1GEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	2.8 V	200 mA

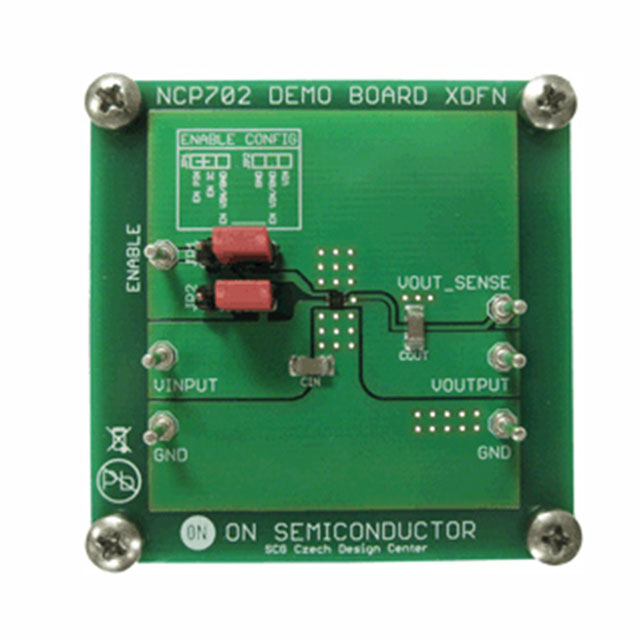

ON Semiconductor NCP702MX33TCGEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	3.3 V	200 mA
ON Semiconductor NCP702MX18TCGEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	1.8 V	200 mA
ON Semiconductor NCP702MX18TCG							200 mA	Positive	6-XFDFN	6-XDFN (1.5x1.5)	16 µA	Over Current Over Temperature Soft Start Under Voltage Lockout (UVLO)	5.5 V	125 °C	-40 °C	1.8 V	Surface Mount	Enable	1	1.81 mOhm
ON Semiconductor NCP702MX33TCG							200 mA	Positive	6-XFDFN	6-XDFN (1.5x1.5)	16 µA	Over Current Over Temperature Soft Start Under Voltage Lockout (UVLO)	5.5 V	125 °C	-40 °C	3.3 V	Surface Mount	Enable	1	1.81 mOhm
ON Semiconductor NCP702SN30T1GEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	3 V	200 mA
ON Semiconductor NCP702MX30TCGEVB	1 - Single	Fully Populated	Positive Fixed	Board(s)	NCP702	3 V	200 mA

Catalog

LDO Regulator, 200 mA, Ultra-Low Dropout, Ultra-Low Iq, High PSRR, Ultra-Low Noise

Key Features

• Operating Input Voltage Range: 2.0V to 5.5V

• Ultra-Low Output Noise: Typ. 11µVrms from 100Hz to 100kHz

• Ultra-Low No-Load Ground Current of Typ. 10µA

• Adaptive Ground Current Feature

• High Ripple Rejection Ratio: Typ. 70dB @ 1kHz

• Stable with small 1µF ceramic output capacitor

• Guaranteed Min. Output Current: 200mA

• Available Fixed Output Voltage Options: 0.8V to 3.5V

• Output voltage trimming step: 2.5mV

• Enable/Shutdown Pin Function

• Ultra-Low Shutdown Mode Current: Max. 1µA

• Active Output Discharge

• Ouput Short Circuit and Current Limit Protection

• Thermal Shutdown Protection

• Very-Low Dropout Voltage: Typ. 140mV @ 200mA

• Available in small 1.5mm x 1.5mm Ultra-Thin xDFN6 and in TSOP-5

• Output Voltage Accuracy: ±2.0% over Load/Line Regulation and Temperature

Description

Noise sensitive applications such as Phase Locked Loops, Oscillators, Frequency Synthesizers, Low Noise Amplifiers and other Precision Instrumentation require very clean power supplies. The NCP702 is a 200 mA LDO that provides the engineer with a very stable, accurate voltage with ultra-low noise and very high Power Supply Rejection Ratio (PSRR), making it suitable for RF applications. The device doesn't require an additional noise bypass capacitor to achieve ultra-low noise performance. In order to optimize performance for battery operated portable applications, the NCP702 employs an Adaptive Ground Current feature for ultra-low ground current consumption during light-load conditions.
