1183 Series

Catalog

CABLE GLAND 8-15MM M20 BRASS

Part	Ingress Protection	Type	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Thread Length	Thread Length	Includes	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Thread Size	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

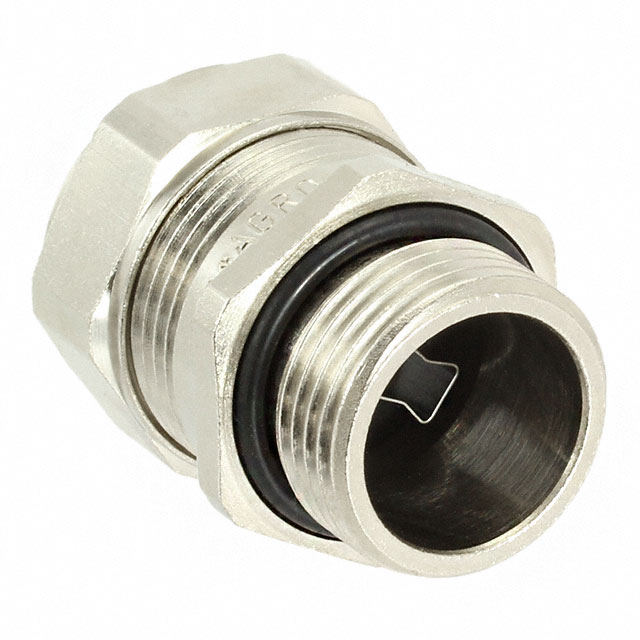

American Electrical Inc. A1183.20	IP68 IP69K	Cable Gland Long Entry	0.315 in	8 mm	0.394 in	10 mm	Contact Spring O-Ring Seal Strain Relief	20 mm	0.787 in	0.591 in	15 mm	Brass Nickel Plated	M20x1.5	Silver

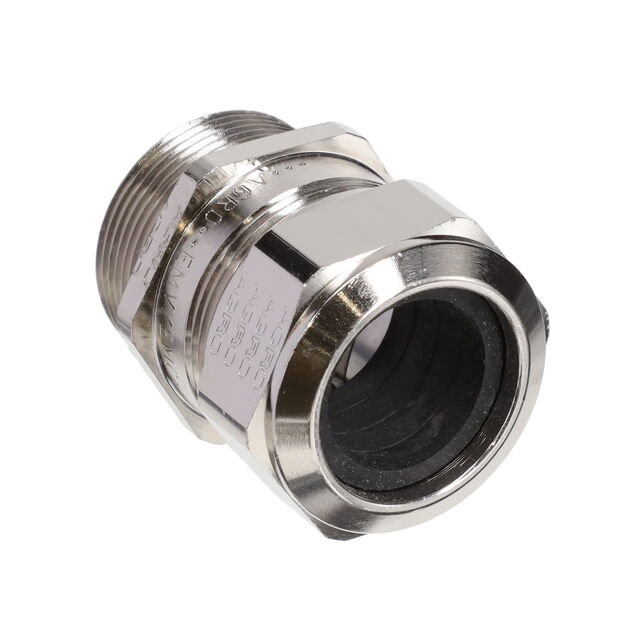

American Electrical Inc. A1183.32	IP68 IP69K	Cable Gland Long Entry			0.512 "	13 mm	Contact Spring O-Ring Seal Strain Relief	32 mm	1.26 in			Brass Nickel Plated	M32x1.5	Silver	-60 °C	100 °C	25.5 mm	1.004 in

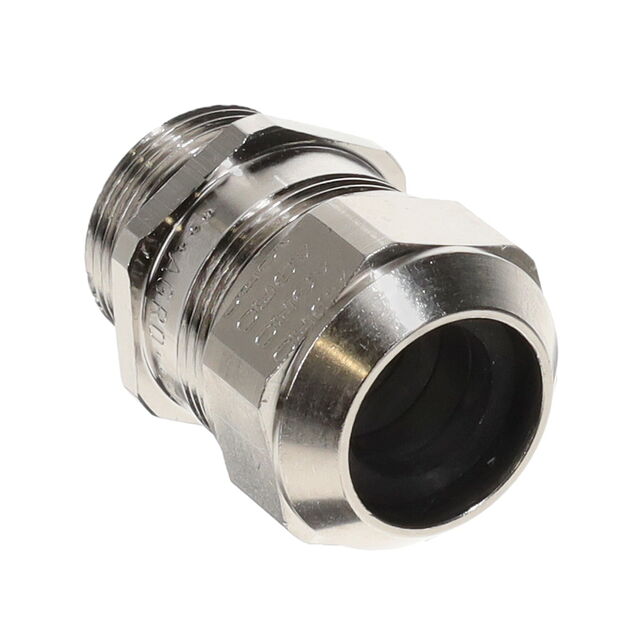

American Electrical Inc. A1183.25	IP68 IP69K	Cable Gland Long Entry			0.433 in	11 mm	Contact Spring O-Ring Seal Strain Relief	25 mm	0.984 in	0.807 in		Brass Nickel Plated	M25x1.5	Silver	-60 °C	100 °C	20.5 mm		0.492 in	12.5 mm

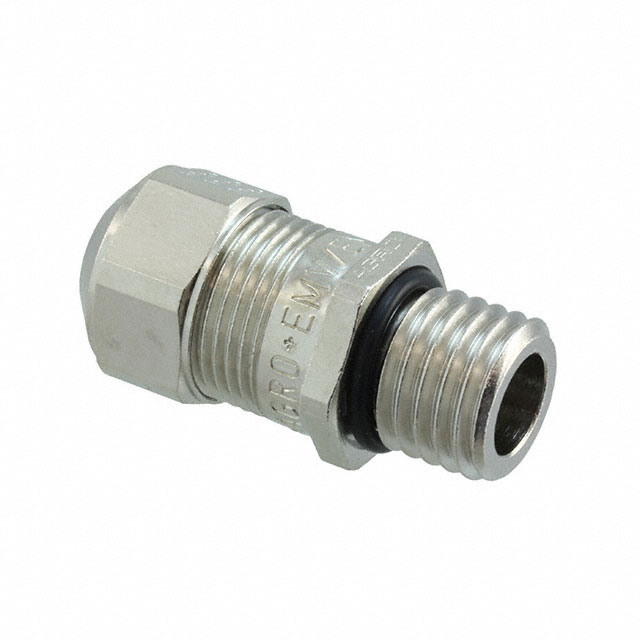

American Electrical Inc. A1183.12.050	IP68 IP69K	Cable Gland Long Entry			0.394 in	10 mm	Contact Spring O-Ring Seal Strain Relief					Brass Nickel Plated	M12x1.5	Silver	-60 °C	100 °C	5 mm	0.197 in	0.138 in		12 mm	0.472 in	3.5 mm

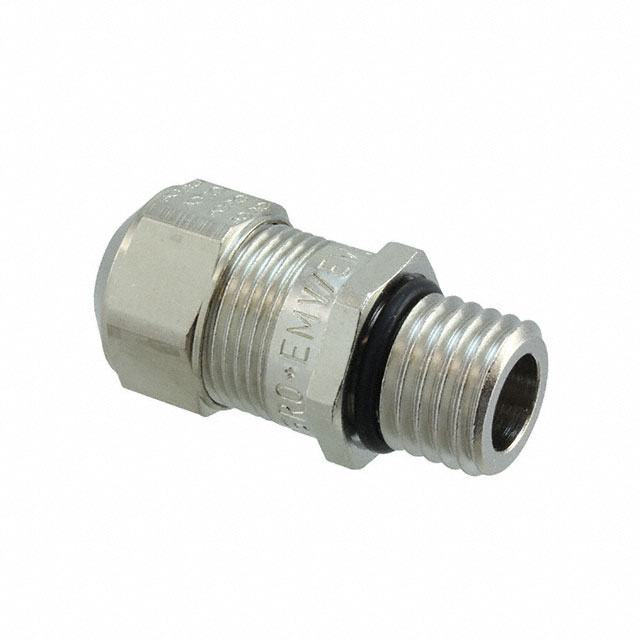

American Electrical Inc. A1183.12.065	IP68 IP69K	Cable Gland Long Entry			0.394 in	10 mm	Contact Spring O-Ring Seal Strain Relief					Brass Nickel Plated	M12x1.5	Silver	-60 °C	100 °C	6.5 mm	0.256 in			12 mm	0.472 in		0.197 in	5 mm
