228435 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

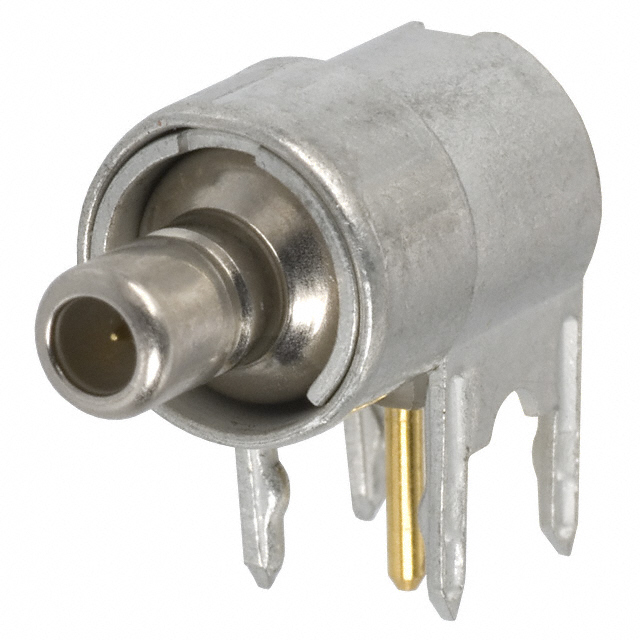

CONN SMB JACK R/A 50 OHM PCB
| Part | Contact Termination | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Connector Type | Insertion Loss | Voltage Rating | Dielectric Material | Center Contact Material | Mounting Type | Housing Color | Body Material | Body Finish | Impedance | Number of Ports | Frequency - Max [Max] | Shield Termination | Connector Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | 500 | -65 ░C | 165 °C | Gold | Jack Male Pin | 0.6 dB | 335 V | Polypropylene (PP) | Brass | Through Hole Right Angle | Silver | Brass | Nickel | 50 Ohms | 1 | 4 GHz | Solder | SMB | Snap-On |
