325-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 32POS 0.100
| Part | Termination Rows | Material - Insulation | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness | Card Thickness | Color | Termination | Gender | Mounting Type | Flange Feature | Number of Rows | Contact Type | Card Type | Pitch | Pitch | Number of Positions/Bay/Row | Contact Finish | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

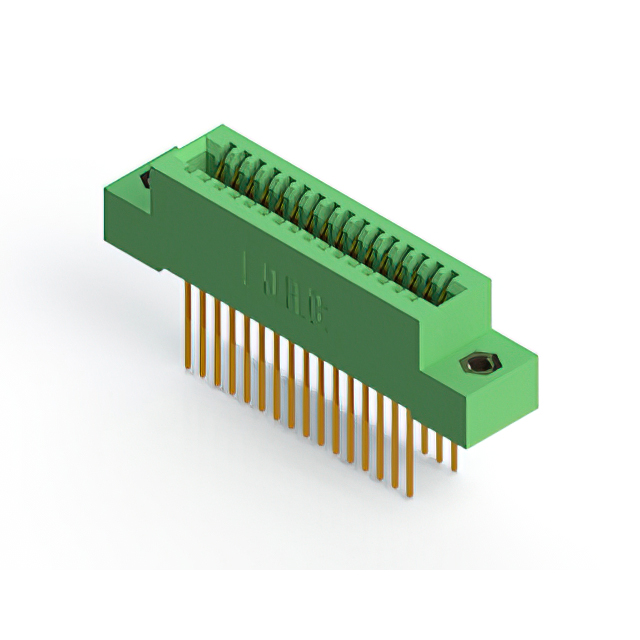

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | 32 | Gold | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 16 | Gold | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Solder Eyelet(s) | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 16 | Gold | 2 | 2 | ||||

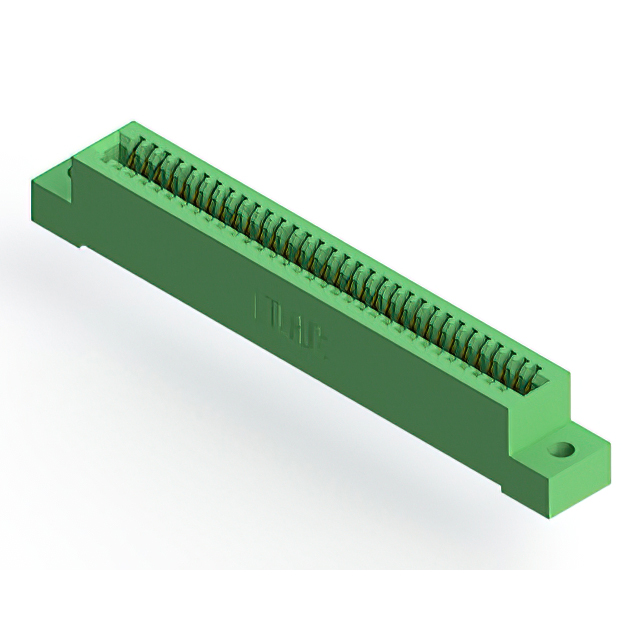

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Solder | Female | Through Hole | Flush Mount Top Opening Unthreaded | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | 32 | Gold | 0.16 " | 4.06 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 16 | Gold | 2 | 2 | ||||

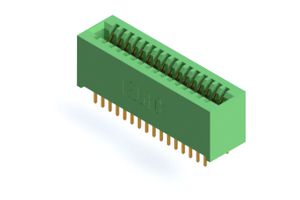

 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Solder | Female | Through Hole | Cantilever | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 16 | Gold | 2 | 2 | |||||

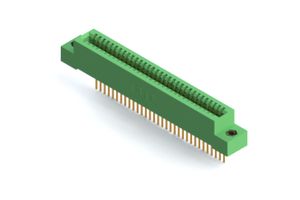

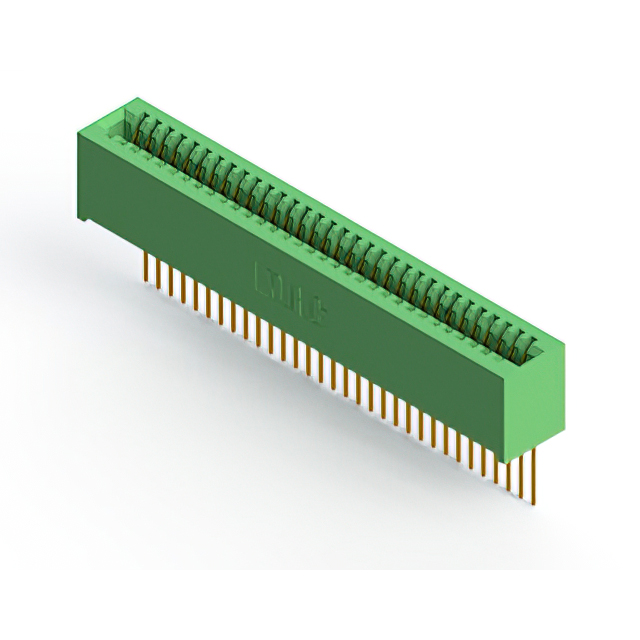

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | 32 | Gold | |||||

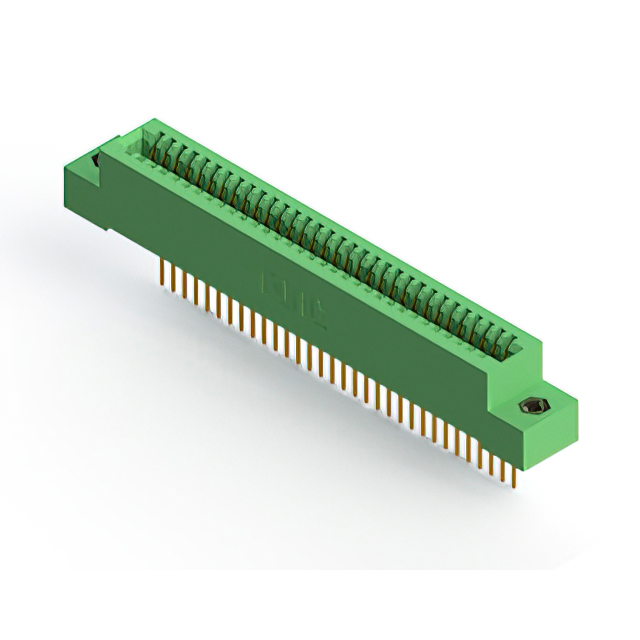

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | 32 | Gold | ||||

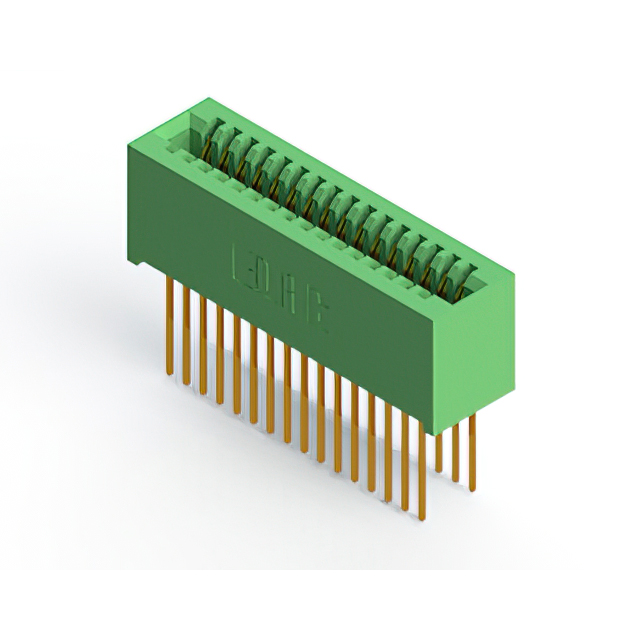

 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Wire Wrap | Female | Through Hole | Cantilever | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 16 | Gold | 2 | 2 | |||||

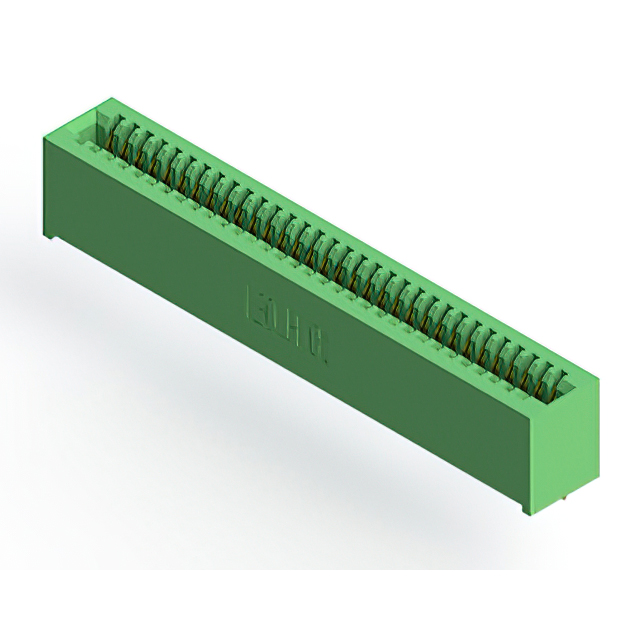

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 3.18 mm | 0.125 in | Green | Solder | Female | Through Hole | 1 | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | 32 | Gold |
