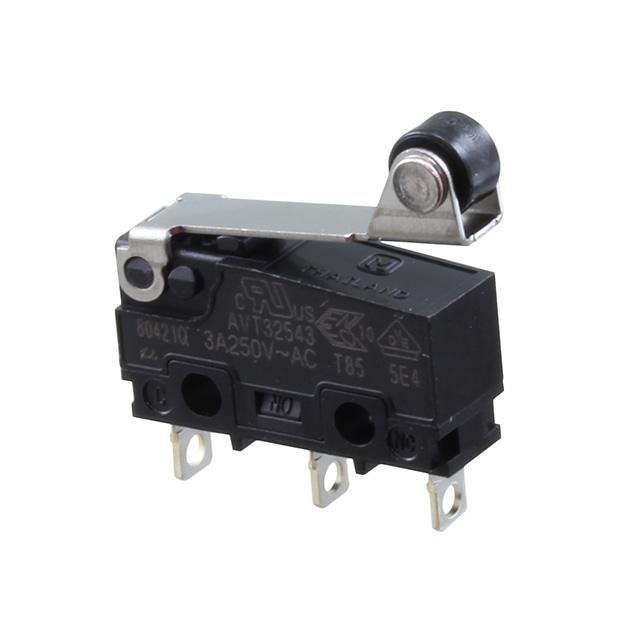

AVT32543 Series
Manufacturer: Panasonic Electric Works
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 125V
| Part | Release Force | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Mechanical Life | Switch Function | Pretravel | Pretravel | Voltage Rating - AC | Electrical Life | Operating Position [custom] | Operating Position [custom] | Mounting Type | Current Rating (Amps) | Differential Travel | Differential Travel | Overtravel | Overtravel | Termination Style | Voltage Rating - DC | Operating Force | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electric Works | 3.5 gf | -25 °C | 85 °C | SPDT | 500000 Cycles | On-Mom | 0.1 in | 2.5 mm | 125 V | 50000 Cycles | 0.571 in | 14.5 mm | Chassis Mount | 3 A | 0.5 mm | 0.02 in | 0.76 mm | 0.03 in | Solder Lug | 30 V | 40 gf | Lever Roller |
