P88G-4 Series

Catalog

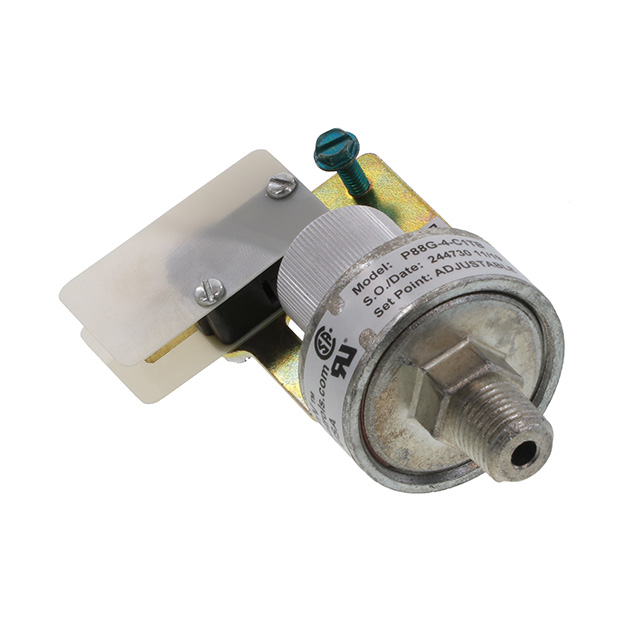

PRESSURE SWITCH 3-40 PSIG

Part	Port Size	Port Size	Port Size	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Accuracy	Accuracy	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case
Whitman Controls, LLC P88G-4-C1TB	Male NPT	0.25 "	0.25 in	Quick Connect - 0.250" (6.3mm)	40 PSI	20.68 kPa	275.79 kPa	3 PSI	6.89 kPa	1 PSI	Switch	85 °C	-35 °C	SPDT	Threaded	4136.85 kPa	600 PSI	Cylinder Threaded
