14-4-028 Series
Manufacturer: Igus
Beta
⌘K

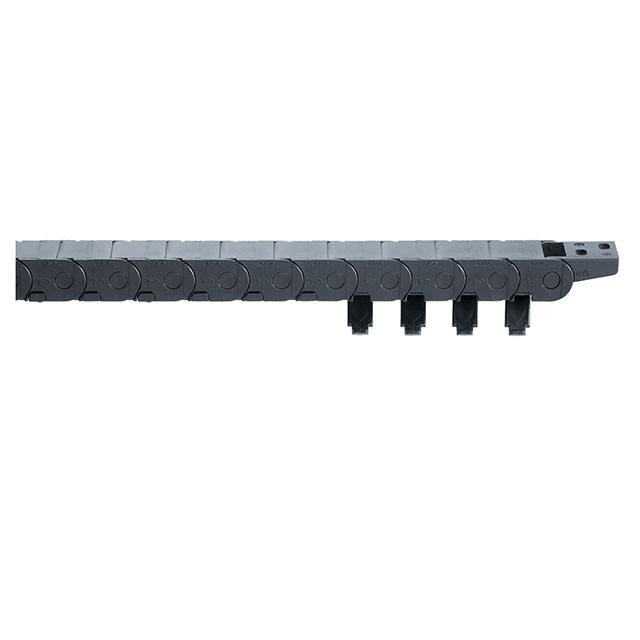

CABLE CARRIER .98H X 2.40W 1=1FT
| Part | Minimum Bend Radius [Min] | Minimum Bend Radius [Min] [radius] | Cavity Width | Cavity Width [y] | Outer Height [z] | Outer Height [z] | Cavity Height | Cavity Height [z] | Outer Width [y] | Outer Width [y] | Frame Type | Loading Side | Operating Temperature [Max] | Operating Temperature [Min] | Material | Link Pitch | Link Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Igus | 27.94 mm | 1.1 " | 50.04 mm | 1.97 in | 0.98 in | 24.89 mm | 20.07 mm | 0.79 in | 60.96 mm | 2.4 in | Open | Inside and Outside Bend | 120 °C | -40 C | Igumid G | 1.2 in | 30.48 mm |
