1051 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
2031 8029 92
| Part | Body Finish | Mating Cycles | Center Contact Plating | Voltage Rating | Body Material | Includes | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Connector Type | Cable Group | Fastening Type | Connector Style | Number of Ports | Shield Termination | Contact Termination | Frequency - Max [Max] | Housing Color | Mounting Type | Impedance | Insertion Loss | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||||||

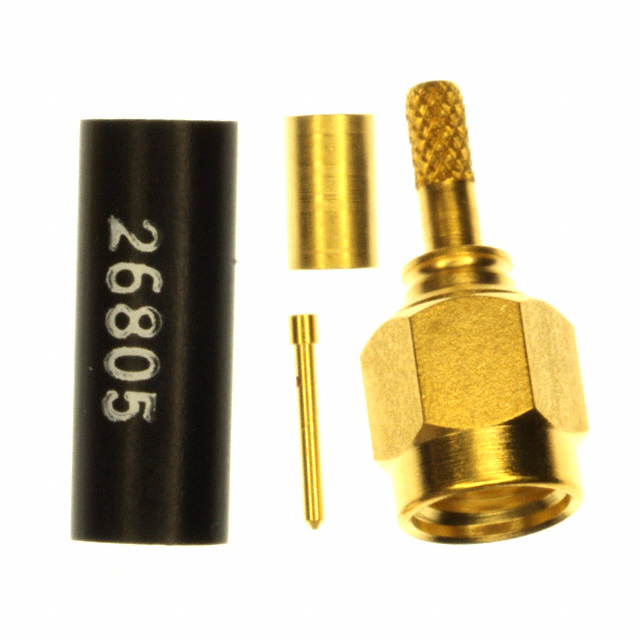

 TE Connectivity AMP Connectors | Gold | 500 | Gold | 250 V | Stainless Steel | 1 Connector 1 Contact 1 Heat Shrink 1 Sleeve | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Plug Male Pin | RG-188 | Threaded | SMA | 1 | Crimp | Solder | 12.4 GHz | Gold | Free Hanging (In-Line) | 50 Ohms | ||

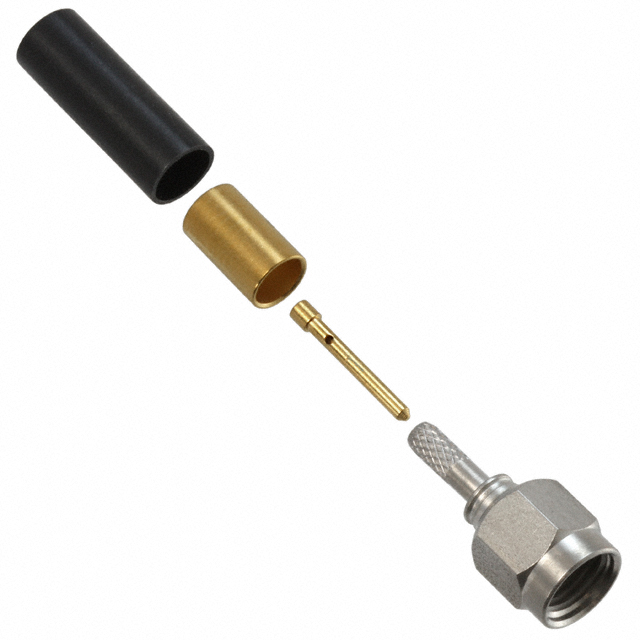

 TE Connectivity AMP Connectors | 500 | Gold | 250 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Plug Male Pin | RG-174 | Threaded | SMA | 1 | Crimp | Solder | 12.4 GHz | Silver | Free Hanging (In-Line) | 50 Ohms | ||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||

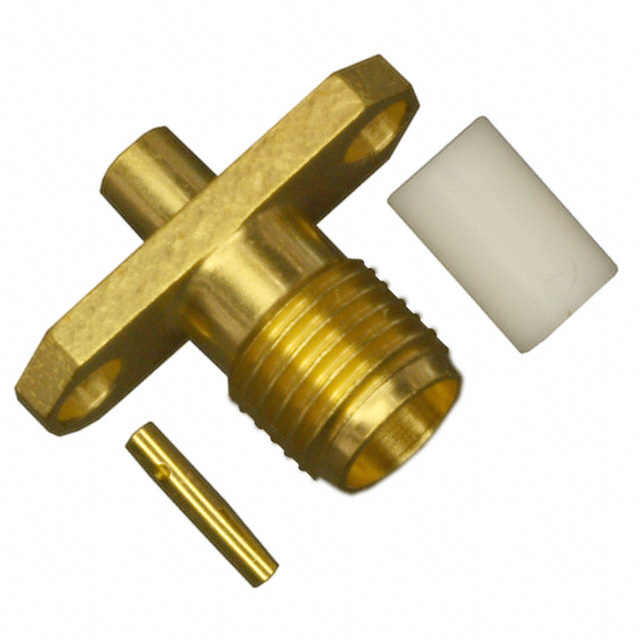

TE Connectivity AMP Connectors | Gold | 500 | Gold | 335 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 105 ░C | Beryllium Copper | Female Socket Jack | RG-405 (.085" Semi Rigid) | Threaded | SMA | 1 | Solder | Solder | 18 GHz | Gold | Panel Mount | 50 Ohms | 0.3 dB | Flange | |

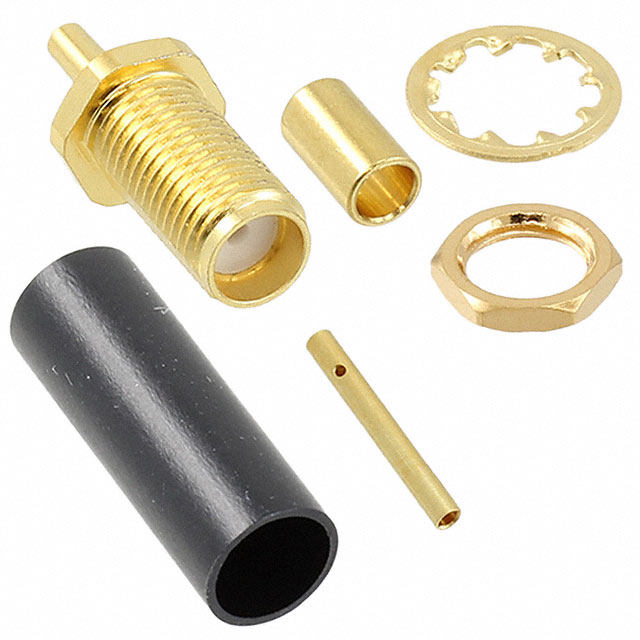

 TE Connectivity AMP Connectors | Gold | 500 | Gold | 250 V | Stainless Steel | 6 pcs - 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Female Socket Jack | 179 187 188 316 RG-174 | Threaded | SMA | 1 | Solder | Solder | 12.4 GHz | Gold | Panel Mount | 50 Ohms | Bulkhead - Front Side Nut | |

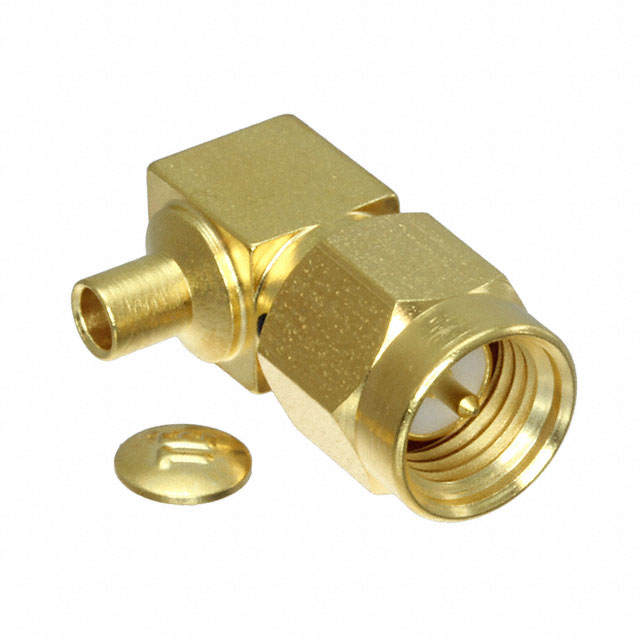

TE Connectivity AMP Connectors | Gold Passivated | 500 | Gold | 500 V | Stainless Steel | 1 Connector 1 End Cap | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Plug Male Pin | Threaded | SMA | 1 | Solder | Solder | 12.4 GHz | Gold Silver | Free Hanging (In-Line) Right Angle | 50 Ohms | |||
TE Connectivity AMP Connectors | Gold | Gold | 500 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Female Socket Jack | Threaded | SMA | 1 | Solder | Solder | 18 GHz | Gold | Panel Mount | 50 Ohms | Bulkhead - Front Side Nut | ||||
 TE Connectivity AMP Connectors | Gold | 500 | Gold | 335 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Female Socket Jack | RG-405 (.085" Semi Rigid) | Threaded | SMA | 1 | Solder | Solder | 18 GHz | Gold | Panel Mount | 50 Ohms | Flange | ||
TE Connectivity AMP Connectors |
