MX49004H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER R/A 4POS 2MM
| Part | Applications | Insulation Material | Number of Positions Loaded | Style | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Contact Material | Features | Fastening Type | Number of Positions | Contact Shape | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows [custom] | Contact Finish - Post | Contact Type | Termination | Shrouding | Connector Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

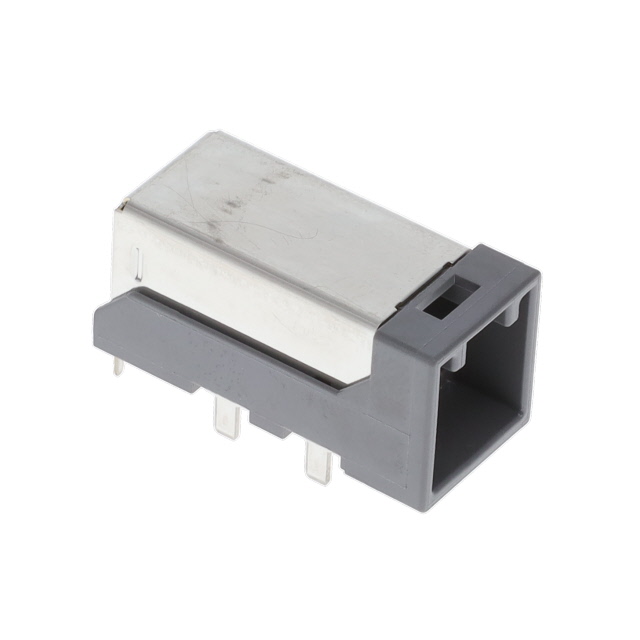

 JAE Electronics | Automotive | Glass Filled Syndiotactic Polystyrene (SPS) | All | Board to Cable/Wire | 0.079 " | 2 mm | 2.2 mm | 0.087 in | Gold | Brass | Board Guide Board Lock Shielded | Latch Holder | 4 | Square | 12.6 mm | 0.496 in | 85 °C | -40 C | Right Angle Through Hole | 2 | Tin | Male Pin | Solder | Shrouded - 4 Wall | Header | |

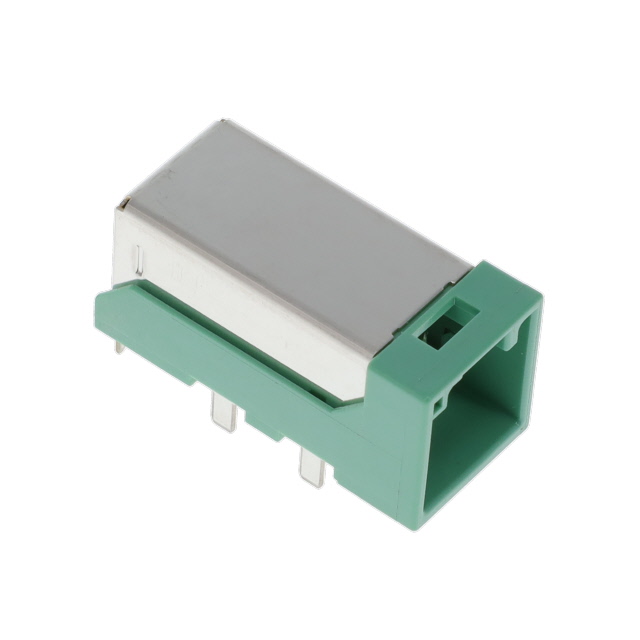

 JAE Electronics | Polyphenylene Sulfide (PPS) Glass Filled | All | Board to Cable/Wire | 0.079 " | 2 mm | Gold | Brass | Board Guide Shielded | Latch Holder | 4 | 12.6 mm | 0.496 in | 85 °C | -40 C | Surface Mount Right Angle Through Hole | 2 | Tin | Male Pin | Solder | Shrouded - 4 Wall | Header | Green |
