IC & Component Sockets STANDARD SOLDER TAIL CARRIER
IC & Component Sockets STANDARD SOLDER TAIL CARRIER
| Part | Connector Style | Accomodates a Fuse | Connector Type | Number of Positions | Number of Positions | Material Flammability Rating | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Mounting Type | Voltage Rating - Appliance Inlet | Filter Type | Ingress Protection | Panel Cutout Dimensions | Termination | Termination | Approval Agency | Current Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

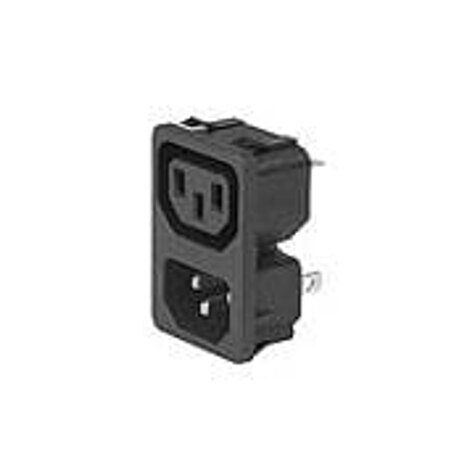

 SCHURTER Inc. | IEC 320-2-2/F IEC 320-C14 | Receptacle Female Sockets Receptacle Male Blades | 2 | 3 | UL94 V-0 | 0.079 " | 0.031 " | 2 mm | 0.79 mm | Panel Mount Snap-In | 250 VAC | Unfiltered - Commercial | IP30 | Variable Size | 0.189 " 4.8 mm | Quick Connect | CCC CSA ENEC UL | 10 A |
