V7812 Series

Manufacturer: CUI Inc.

Catalog

MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 3-PIN

Part	Applications	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Mounting Type	Features	Type	Voltage - Output 1	Control Features

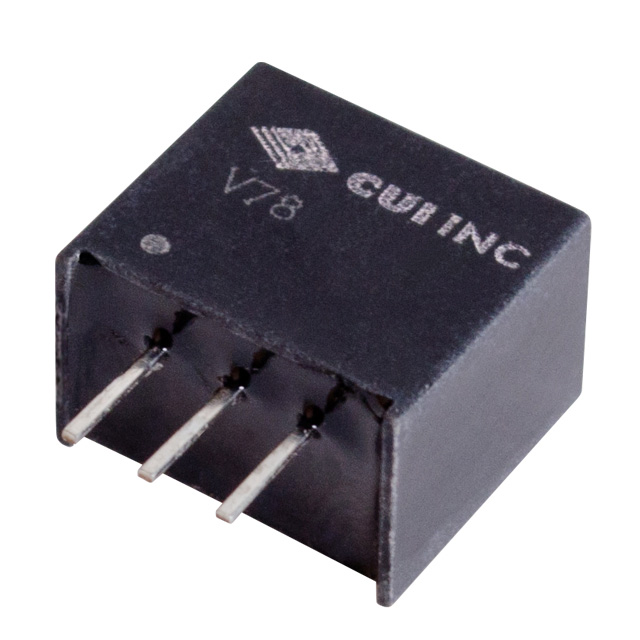

CUI Inc. V7812-500	ITE (Commercial)	1	95 %	15 V	3-SIP Module	0.3 "	0.45 "	0.4 "	10.2 mm	7.6 mm	11.4 mm	500 mA	32 V	85 °C	-40 C	6 W	Through Hole	OTP SCP	Linear Regulator Replacement	12 V

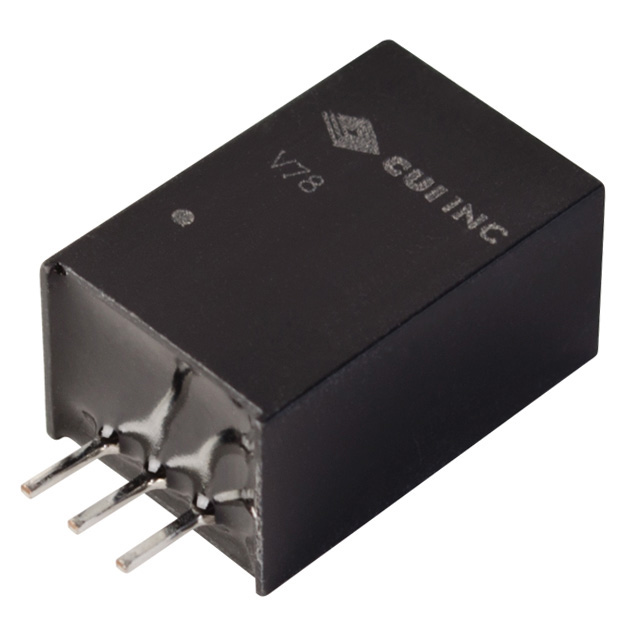

CUI Inc. V7812W-500	ITE (Commercial)	1	93 %	17 V	3-SIP Module	0.35 in	0.45 "	0.69 in	17.5 mm	9 mm	11.5 mm	500 mA	72 V	85 °C	-40 C	6 W	Through Hole	OTP SCP	Linear Regulator Replacement	12 V
CUI Inc. V7812-1000R	ITE (Commercial)	1	95 %	16 V	3-SIP Module	0.45 in	0.69 in	0.35 in	9 mm	11.5 mm	17.5 mm	1 A	32 V	85 °C	-40 C	12 W	Right Angle Through Hole	OTP SCP	Linear Regulator Replacement	12 V

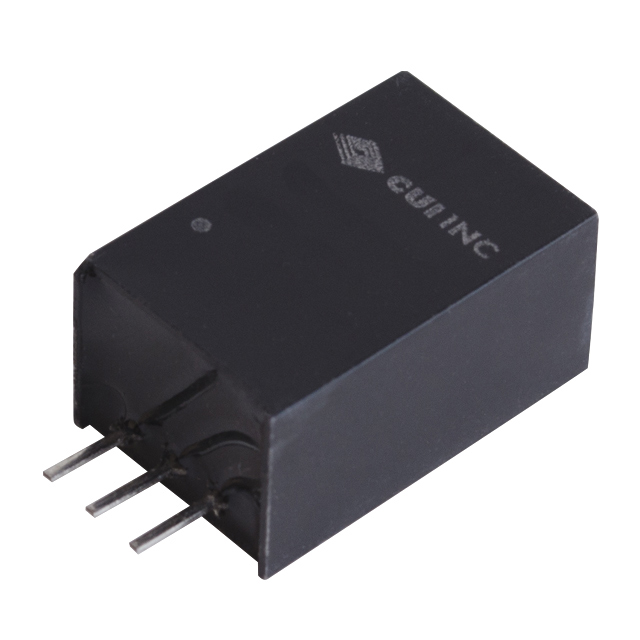

CUI Inc. V7812-1000	ITE (Commercial)	1	95 %	16 V	3-SIP Module	0.35 in	0.45 "	0.69 in	17.5 mm	9 mm	11.5 mm	1 A	32 V	85 °C	-40 C	12 W	Through Hole	OTP SCP	Linear Regulator Replacement	12 V

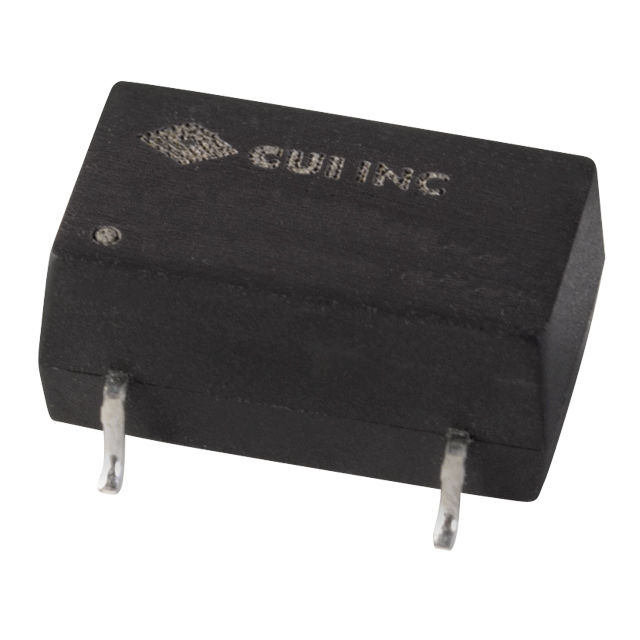

CUI Inc. V7812-500-SMT	ITE (Commercial)	1	95 %	14 V	10-SMD Module 6 Leads	0.33 "	0.6 "	0.29 in	7.3 mm	8.3 mm	15.2 mm	500 mA	28 V	85 °C	-40 C	6 W	Surface Mount	OTP Remote On/Off SCP	Linear Regulator Replacement	12 V	Active High Enable
