ES1000 Series

Catalog

CONN TERM STRIP 2CIRC 0.394"

Part	Terminal Screw Material	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Finish	Mounting Type	Number of Circuits	Color	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Block Type	Top Termination	Current Rating (Amps)	Number of Rows [custom]	Pitch	Pitch	Number of Wire Entries	Barrier Type	Bottom Termination	Number of Circuits [custom]

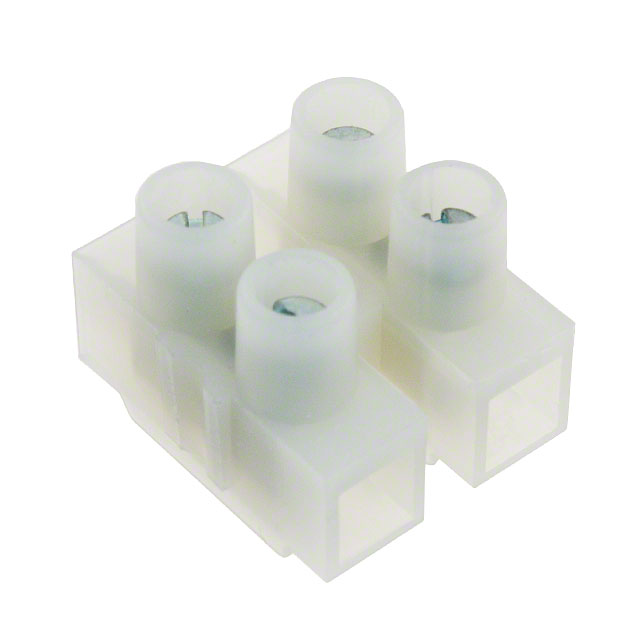

On Shore Technology Inc. ES1000/02DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	2	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	4	Enclosed	Closed

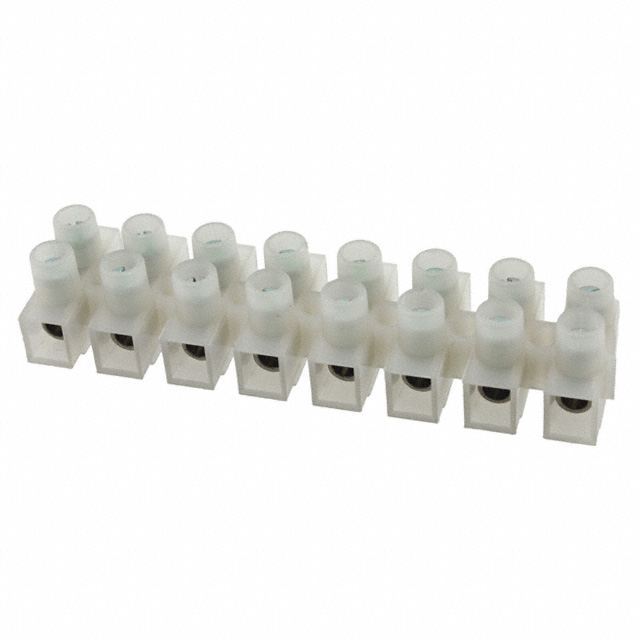

On Shore Technology Inc. ES1000/08DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	8	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	16	Enclosed	Closed
On Shore Technology Inc. ES1000/09DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel		Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	18	Enclosed	Closed	9
On Shore Technology Inc. ES1000/07DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	7	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	14	Enclosed	Closed
On Shore Technology Inc. ES1000/05DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	5	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	10	Enclosed	Closed

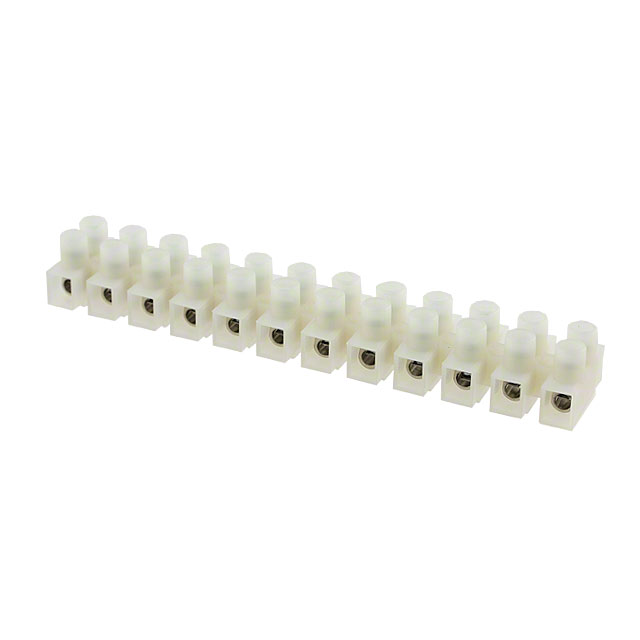

On Shore Technology Inc. ES1000/12DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	12	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm		Enclosed	Closed

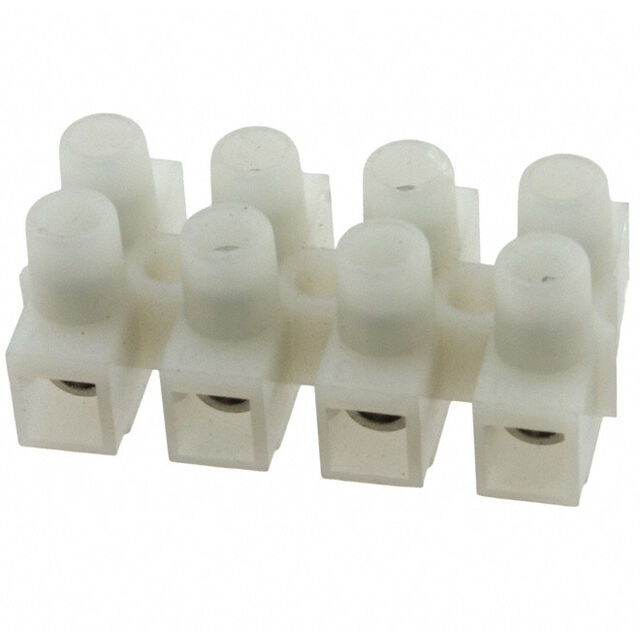

On Shore Technology Inc. ES1000/04DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	4	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	8	Enclosed	Closed
On Shore Technology Inc. ES1000/10DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	10	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	20	Enclosed	Closed

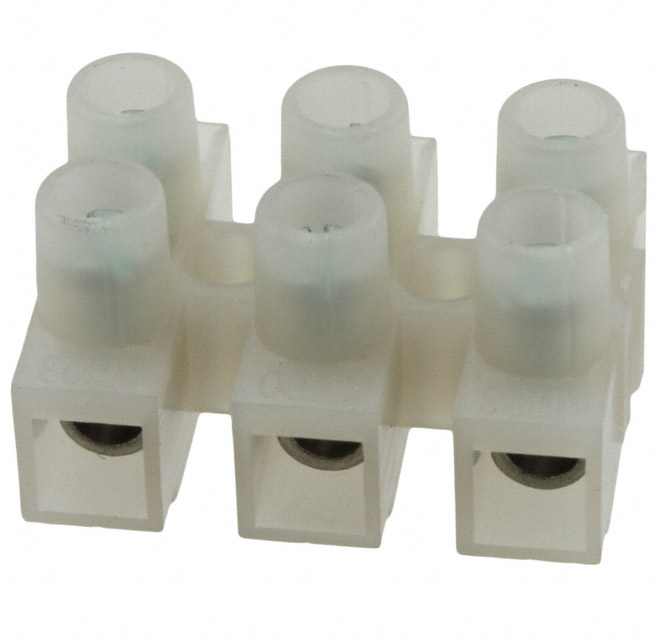

On Shore Technology Inc. ES1000/03DSFB	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Zinc	Chassis Panel	3	Natural	300 VDC	12 AWG	20 AWG	Eurostyle Terminal Strip	Screws	20 A	2	0.394 in	10 mm	6	Enclosed	Closed
