189-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

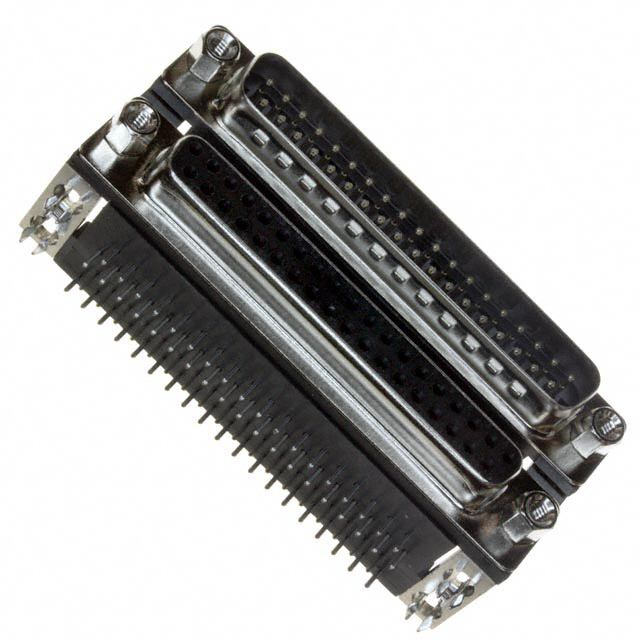

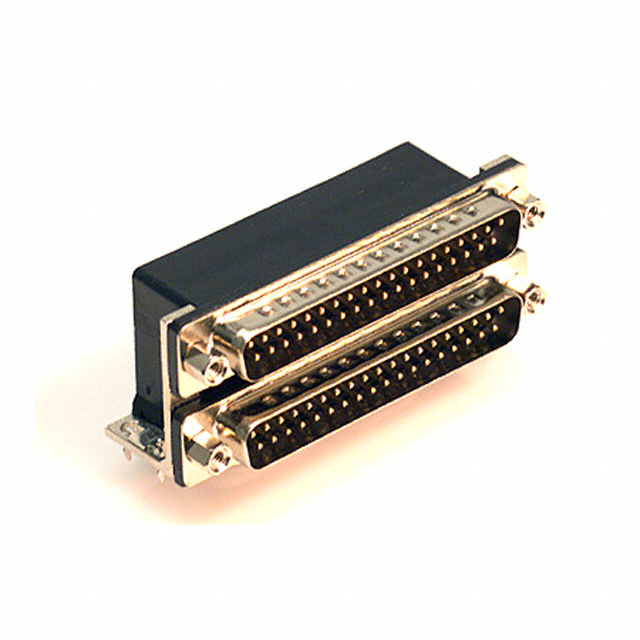

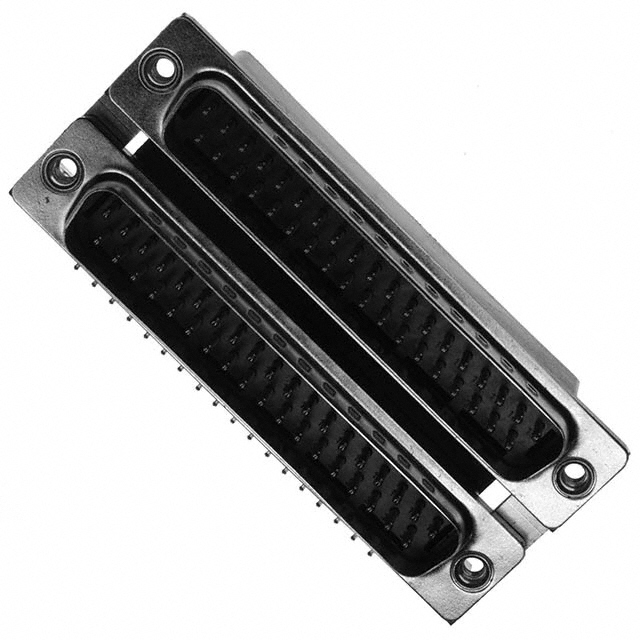

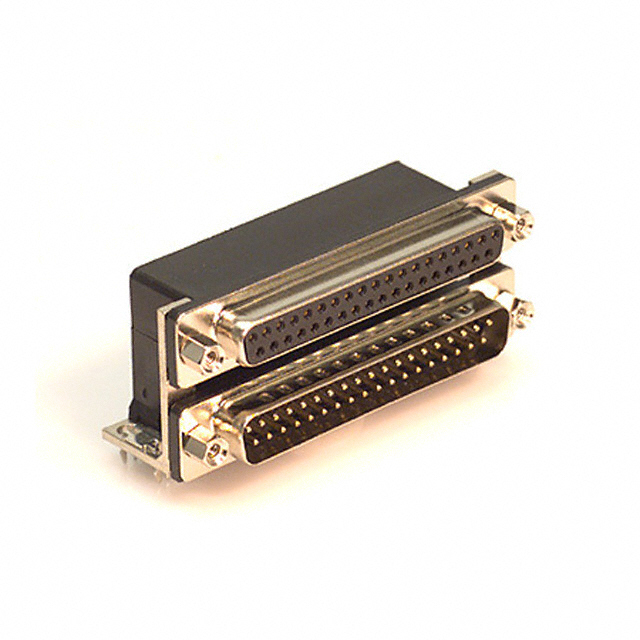

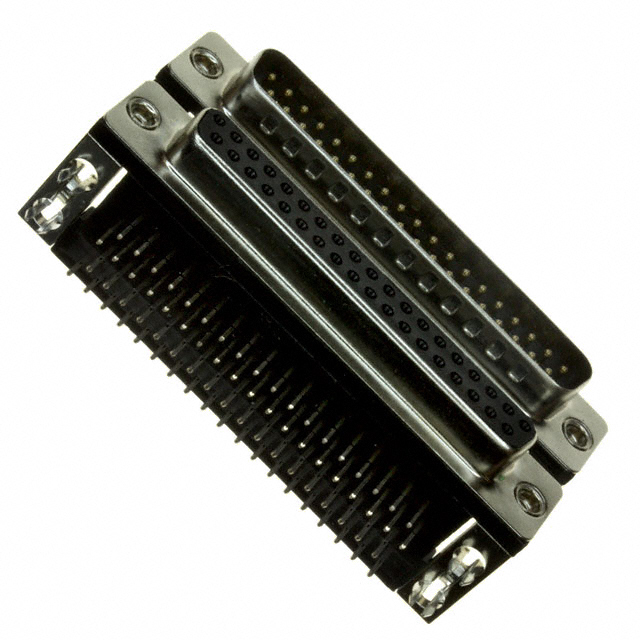

CONN D-SUB PLUG 37POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions [Min] | Number of Positions [Max] | Backset Spacing | Backset Spacing | Mounting Type | Number of Rows [custom] | Connector Type | Material Flammability Rating | Termination | Contact Type | Current Rating (Amps) | Shell Size, Connector Layout | Flange Feature | Connector Style | Contact Finish | Features | Contact Finish Thickness | Contact Form | Flange Feature | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polyester Glass Filled | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Board Lock Grounding Indents | Flash | |||
 NorComp Inc. | Polyester Glass Filled | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Board Lock Grounding Indents | Flash | ||||
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | Housing/Shell | D-Sub - Stacked | Gold | Board Lock Grounding Indents Shielded | Flash | Stamped | 4-40 | Nickel Plated Steel |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Board Lock Grounding Indents Shielded | Flash | Stamped | Nickel Plated Steel | |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Grounding Indents Shielded | Flash | Stamped | Nickel Plated Steel | |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Shielded | Flash | Stamped | Nickel Plated Steel | |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins | UL94 V-0 | Solder | Signal | 5 A | 4 | Housing/Shell | D-Sub - Stacked | Gold | Board Lock Grounding Indents Shielded | Flash | Stamped | 4-40 | Nickel Plated Steel |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | 4-40 Mating Side Female Screwlock | D-Sub - Stacked | Gold | Board Lock Shielded | Flash | Stamped | Nickel Plated Steel | |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | Housing/Shell | D-Sub - Stacked | Gold | Shielded | Flash | Stamped | 4-40 | Nickel Plated Steel |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Brass | -55 C | 105 ░C | Black | 37 | 37 | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | 2 | Plug Male Pins Receptacle Female Sockets | UL94 V-0 | Solder | Signal | 5 A | 4 | Housing/Shell | D-Sub - Stacked | Gold | Board Lock Grounding Indents Shielded | Flash | Stamped | 4-40 | Nickel Plated Steel |
