HFW12S Series

Catalog

CONN FPC VERT 12POS 1MM SMD

Part	Mating Cycles	Housing Color	Connector/Contact Type	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Pitch	Pitch	Material Flammability Rating	Flat Flex Type	Voltage Rating	FFC, FCB Thickness	Contact Material	Mounting Type	Housing Material	Cable End Type	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HFW12S-2STAE1LF	30	Black	Contacts Vertical - 1 Sided	Solder	12	-55 C	85 °C	Gold	1 mm	0.039 in	UL94 V-0	FPC	100 V	0.3 mm	Phosphor Bronze	Surface Mount	Glass Filled Nylon 6T Polyamide (PA6T)	Tapered	0.209 in	5.3 mm
Amphenol ICC (FCI) HFW12S-4STZE1HLF	30	Black	Contacts Vertical - 1 Sided	Solder	12	-55 C	105 ░C	Tin	1 mm	0.039 in	UL94 V-0	FFC FPC	100 V	0.3 mm	Phosphor Bronze	Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Straight	0.209 in	5.3 mm

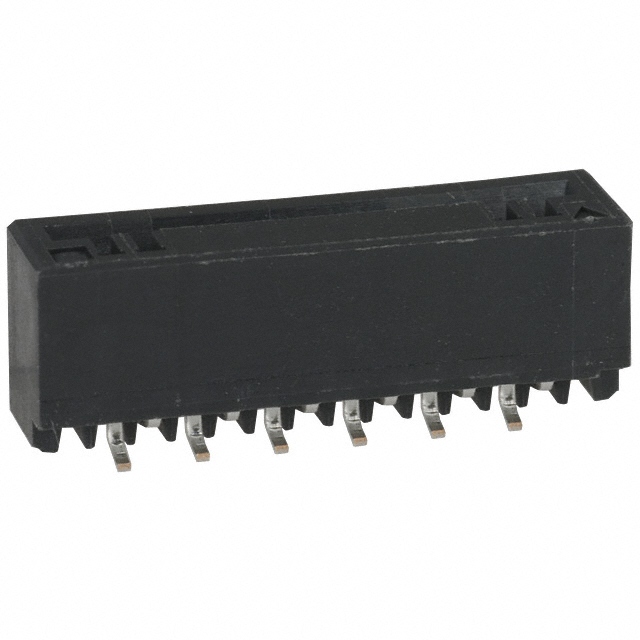

Amphenol ICC (FCI) HFW12S-2STE1LF	30	Black	Contacts Vertical - 1 Sided	Solder	12	-55 C	85 °C	Tin	1 mm	0.039 in	UL94 V-0	FFC FPC	100 V		Phosphor Bronze	Surface Mount	Glass Filled Nylon 6T Polyamide (PA6T)	Straight Tapered	0.209 in	5.3 mm	0.3 mm	0.33 mm
