3299 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SPADE TERM 10-12AWG #8

Part	Length - Termination	Length - Termination	Contact Material	Terminal Type	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Mounting Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Features	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Color	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Thickness [custom]	Thickness [custom]	Length - Overall	Length - Overall	Stud/Tab Size	Material - Insulation	Wire Gauge

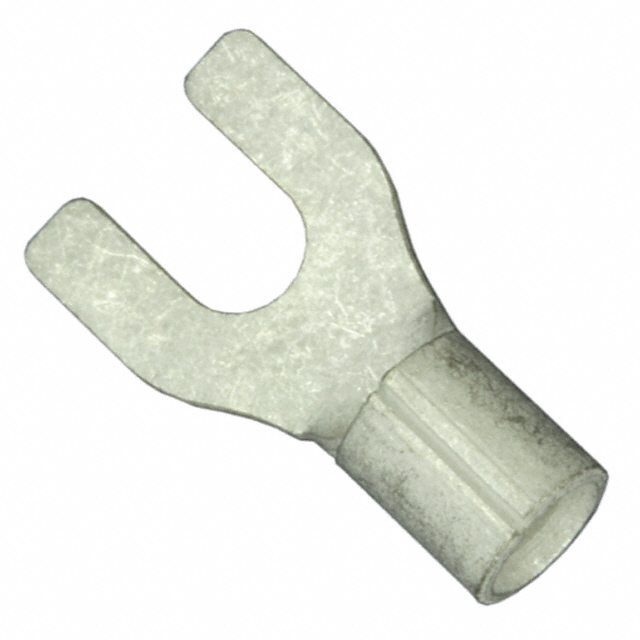

TE Connectivity Raychem Cable Protection 32995	0.268 in	6.81 mm	Copper	Standard	7.52 mm	0.296 in	Non-Insulated	0.772 in	19.61 mm	10.31 mm	0.406 in	Free Hanging (In-Line)	Tin	12 AWG	10 AWG	8 Stud	Brazed Seam Serrated Termination	Crimp	0.171 in	4.34 mm

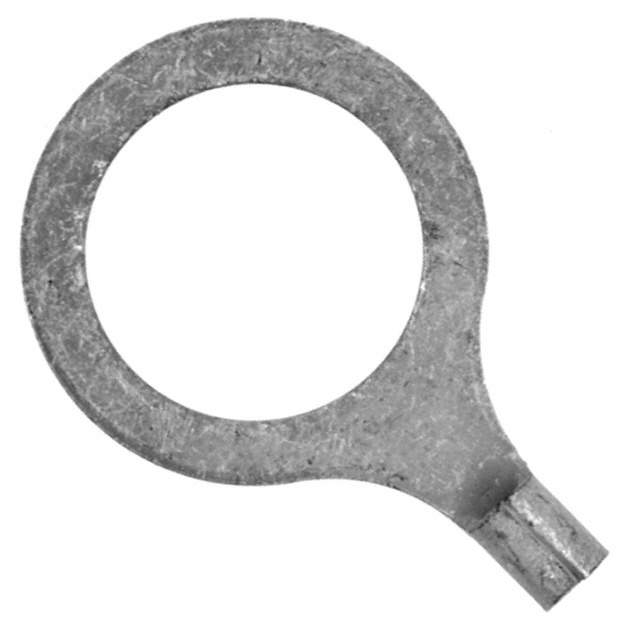

TE Connectivity Raychem Cable Protection 329966			Copper	Circular			Non-Insulated	1.07 in	27.18 mm			Free Hanging (In-Line)	Tin	22 AWG	16 AWG	1/2 Stud	Brazed Seam Serrated Termination	Crimp			0.713 "	18.11 mm	0.031 in	0.79 mm

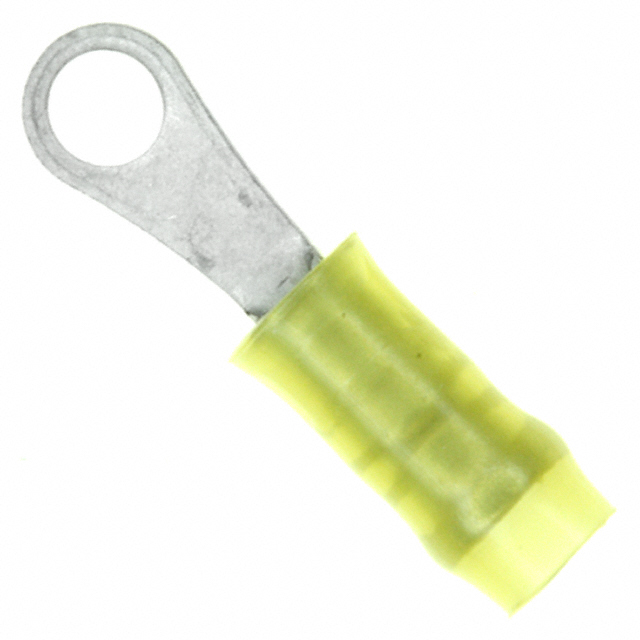

TE Connectivity Raychem Cable Protection 329951			Copper	Circular			Insulated					Free Hanging (In-Line)	Tin	26 AWG	22 AWG		Serrated Termination	Crimp			0.14 in	3.56 mm			Yellow	0.082 "	2.08 mm	0.05 in	1.27 mm	0.46 mm	0.018 in	15.62 mm	0.615 in	2 Stud	Nylon Polyamide (PA)

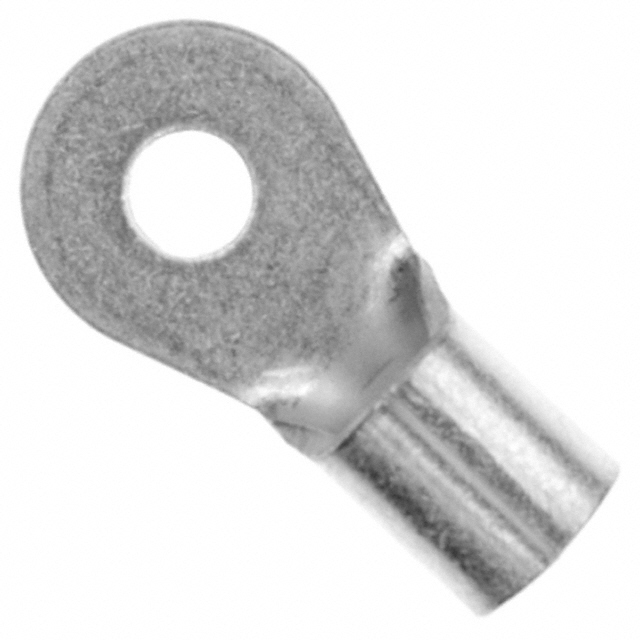

TE Connectivity Raychem Cable Protection 32996			Copper	Circular			Non-Insulated	0.933 in	23.7 mm			Free Hanging (In-Line)	Tin			8 Stud	Brazed Seam Serrated Termination	Crimp			0.469 in	11.91 mm	0.048 in	1.22 mm												8 AWG
