845-064 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 64POS 0.100
| Part | Number of Positions/Bay/Row | Card Type | Color | Gender | Termination | Number of Positions | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Read Out | Material - Insulation | Contact Type | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

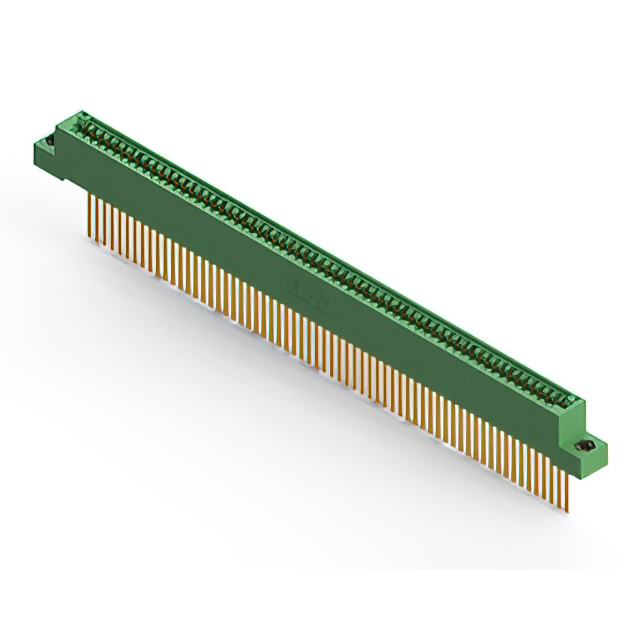

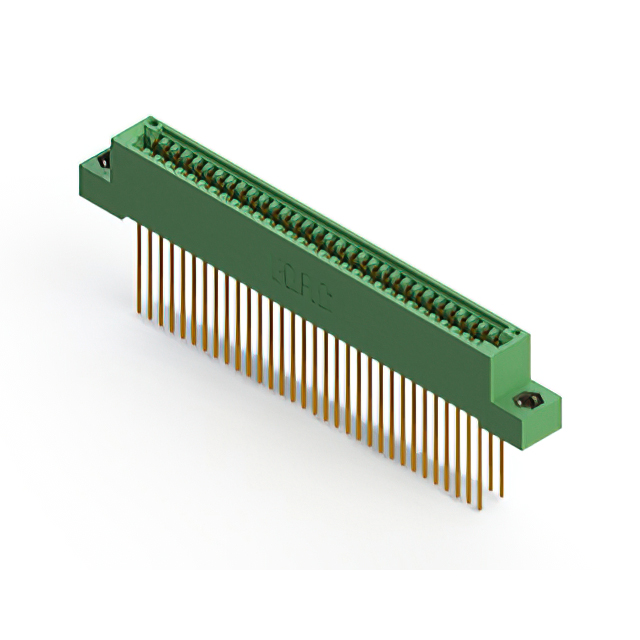

 EDAC Inc. | 64 | Non Specified - Single Edge | Green | Female | Wire Wrap | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 1 | Gold | 1 | 125 °C | -40 C | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Diallyl Phthalate (DAP) | Cantilever | |||||

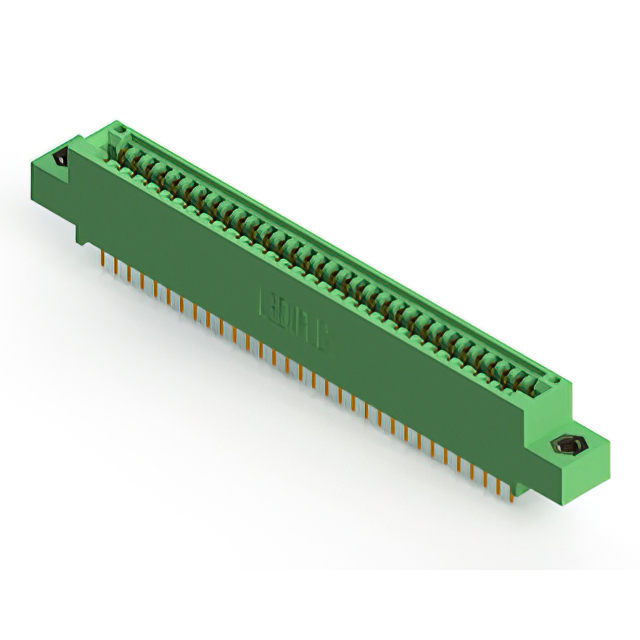

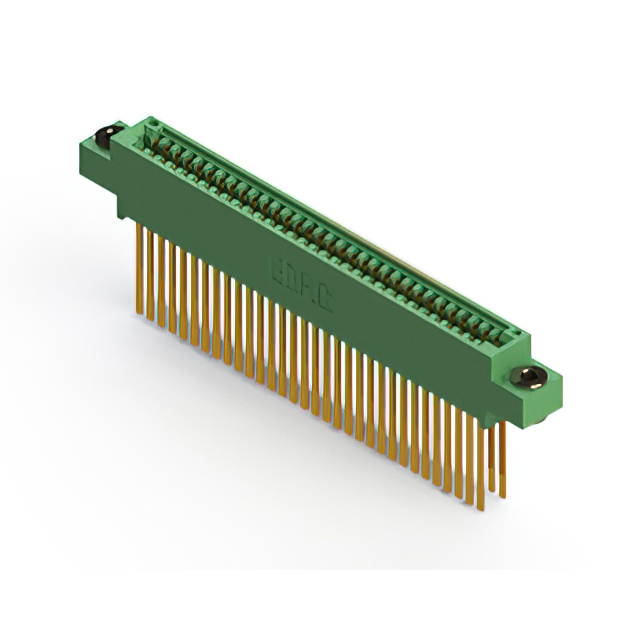

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Solder | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | |||||

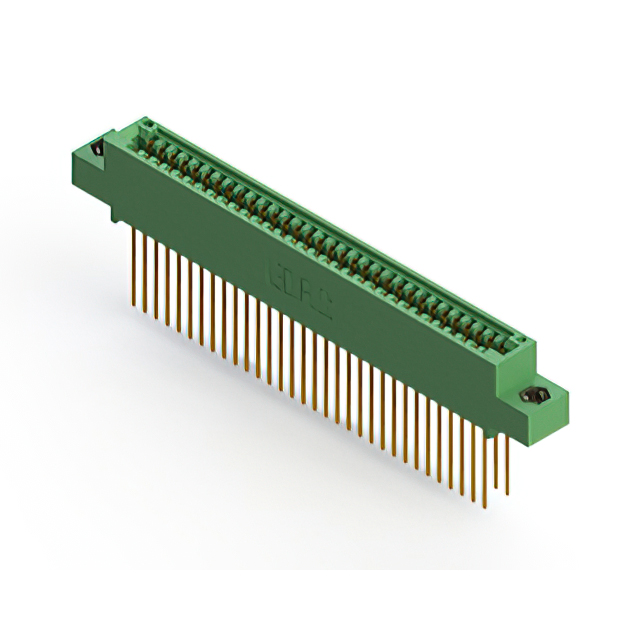

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Wire Wrap | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | |||||

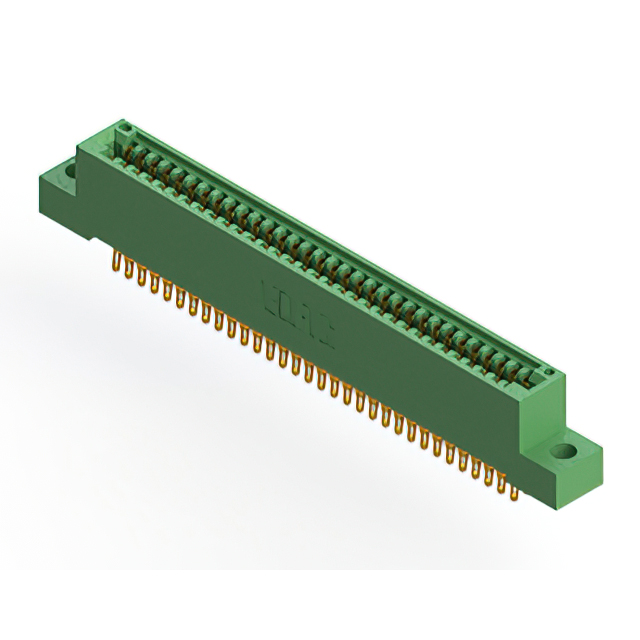

 EDAC Inc. | 64 | Non Specified - Single Edge | Green | Female | Solder | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 1 | Gold | 1 | 125 °C | -40 C | 0.1 " | 2.54 mm | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Diallyl Phthalate (DAP) | Cantilever | 0.128 " | 3.25 mm | |||

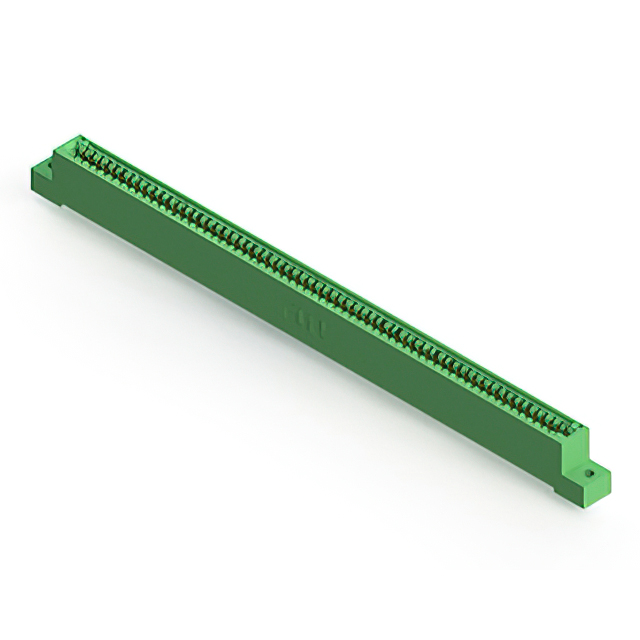

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Wire Wrap | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | 0.116 " | 2.95 mm | |||

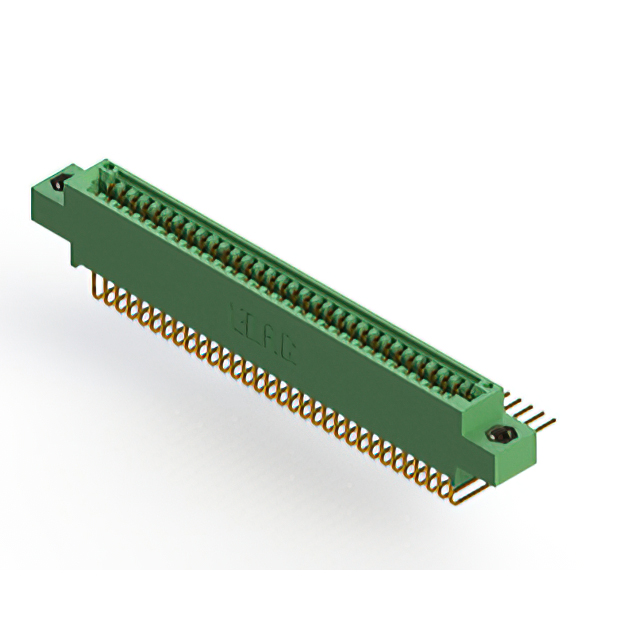

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Solder | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | |||||

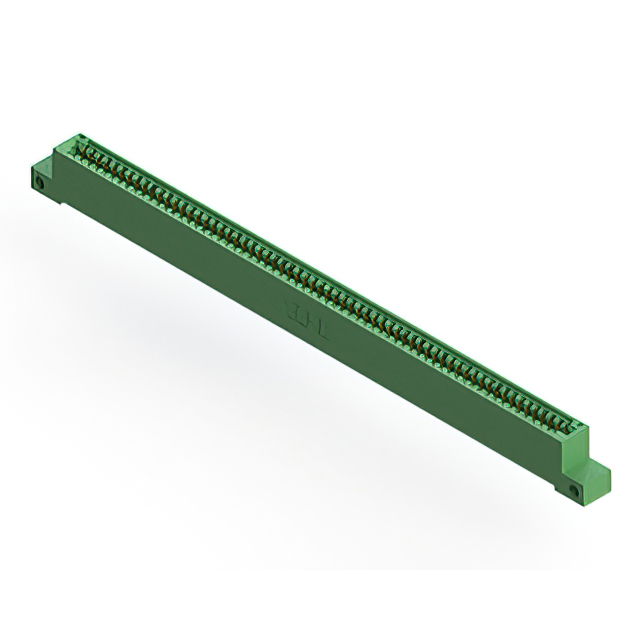

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Wire Wrap | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | |||||

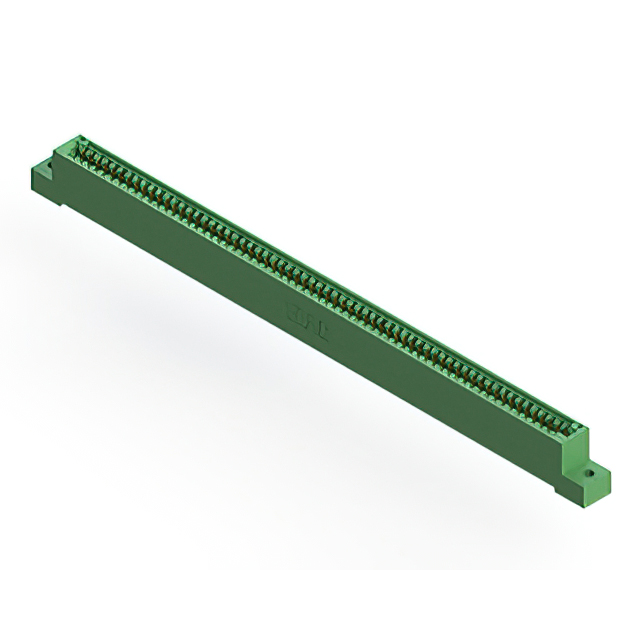

 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Solder | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | |||||
 EDAC Inc. | 64 | Non Specified - Single Edge | Green | Female | Solder | 64 | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 1 | Gold | 1 | 125 °C | -40 C | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Diallyl Phthalate (DAP) | Cantilever | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 32 | Non Specified - Dual Edge | Green | Female | Solder | 64 | Copper Alloy | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Diallyl Phthalate (DAP) | Cantilever | 2 | 2 | 0.156 " | 3.96 mm | Card Extender |
