W205-VM1VM1 Series
Manufacturer: WITHWAVE CO LTD
Beta
⌘K

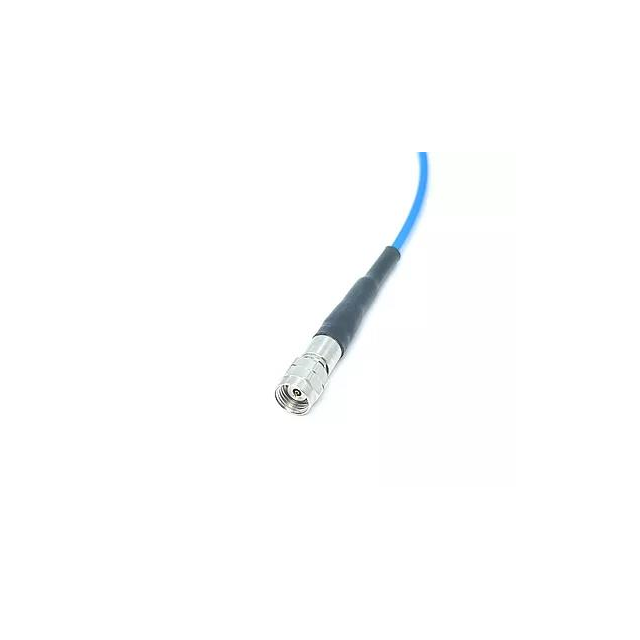

COAX CBL 1.85MM TO 1.85MM 24"
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Overall Impedance | Frequency - Max | Style | 2nd Contact Gender | 1st Contact Gender | Cable Type | Cable Outer Diameter | Cable Type Size | 2nd Connector Mounting Type | 1st Connector Size | 1st Connector | Length | 2nd Connector Diameter | 2nd Connector | 1st Connector Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WITHWAVE CO LTD | 165 °C | -55 °C | 50 Ohms | 67 GHz | 1.85mm to 1.85mm | Male | Male | Coaxial Cable OD Coaxial Cable | 2.4 mm | 2.4 | Free Hanging (In-Line) | 1.85 mm | Plug | 24 in | 1.85 mm | Plug | Free Hanging (In-Line) | Blue |
WITHWAVE CO LTD | 165 °C | -55 °C | 50 Ohms | 67 GHz | 1.85mm to 1.85mm | Male | Male | Coaxial Cable OD Coaxial Cable | 2.4 mm | 2.4 | Free Hanging (In-Line) | 1.85 mm | Plug | 12 in | 1.85 mm | Plug | Free Hanging (In-Line) | Blue |
