317060 Series
Manufacturer: Seeed Technology Co., Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD WIFI TH SMD
| Part | Modulation | Serial Interfaces | Frequency | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Protocol | Voltage - Supply | Operating Temperature (Min) | Operating Temperature (Max) | RF Family/Standard | Utilized IC / Part | Mounting Type | Data Rate | Package / Case | Antenna Type | Sensitivity | Power - Output | Current - Receiving | Current - Transmitting | Frequency (Max) | Frequency (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Seeed Technology Co., Ltd | CCK OFDM | ADC GPIO I2C PWM SPI UART | 2.4 GHz | Flash RAM | 5 MB | 16 MB | 802.11b 802.11g 802.11n | 3.3 V | -40 °C | 85 °C | WiFi | MT3620AN | Surface Mount | 72.2 Mbps | Module | Integrated Trace | ||||||

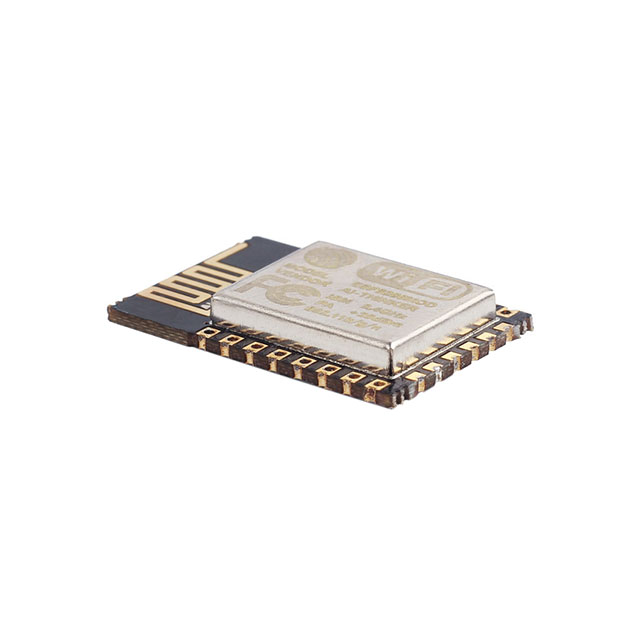

 Seeed Technology Co., Ltd | UART | 2.4 GHz | 802.11b 802.11g 802.11n | 3.3 V | -40 °C | 125 °C | WiFi | ESP8266 | Surface Mount | 54 Mbps | 16-SMD Module | Integrated Trace | -93 dBm | 16 dBm | 12 mA | 70 mA | ||||||

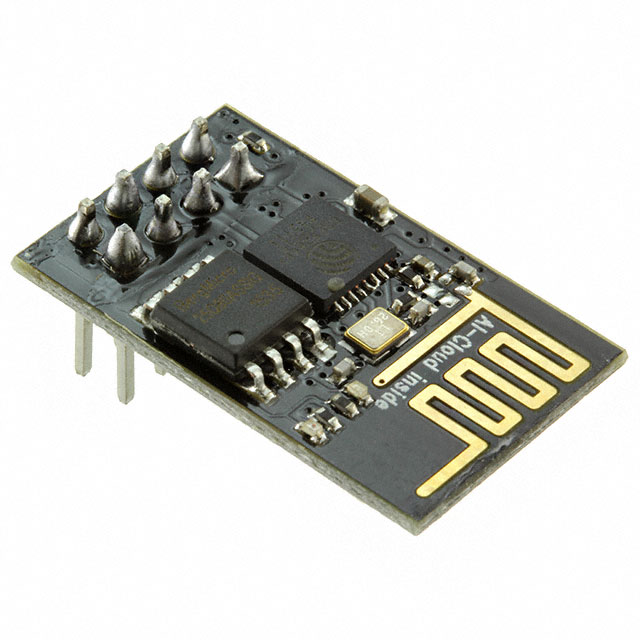

 Seeed Technology Co., Ltd | UART | Flash | 1 MB | 802.11b 802.11g 802.11n | 3.3 V | -20 °C | 100 °C | WiFi | ESP8266 | Through Hole | 72.2 Mbps | Module | Integrated Trace | -98 dBm | 15 dBm | 62 mA | 215 mA | 2.48 GHz | 2.4 GHz | |||

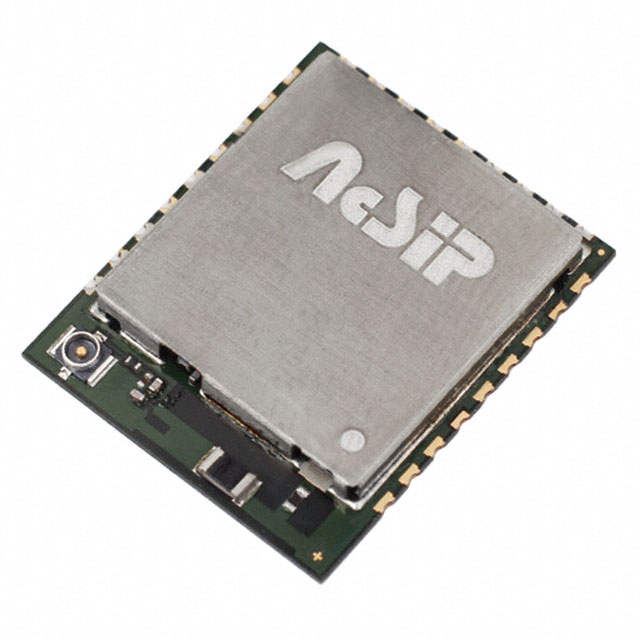

 Seeed Technology Co., Ltd | UART | 2.4 GHz | 802.11b 802.11g 802.11n | -10 °C | 70 °C | WiFi | MT7681 | Surface Mount | Module | Chip + I-PEX Integrated |
