SSL-LX5097 Series

Catalog

LED GRN/RED DIFFUSED T-1 3/4 T/H

Part	Lens Color	Height (Max) [Max] [z]	Lens Style	Color	Current - Test [custom]	Current - Test [custom]	Millicandela Rating	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak	Lens Size	Lens Size	Mounting Type	Package / Case	Lens Transparency	Supplier Device Package	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Size / Dimension [diameter]	Millicandela Rating [custom]	Current - Test
Lumex Opto/Components Inc. SSL-LX5097IGW-CA	White	8.6 mm	Round with Domed Top	Green Red	20 mA	20 mA	20 mcd 20 mcd	60 °	2.1 V 2.1 V	Common Anode	565 nm 635 nm	5 mm	T-1 3/4	Through Hole	Radial - 3 Leads	Diffused	T-1 3/4

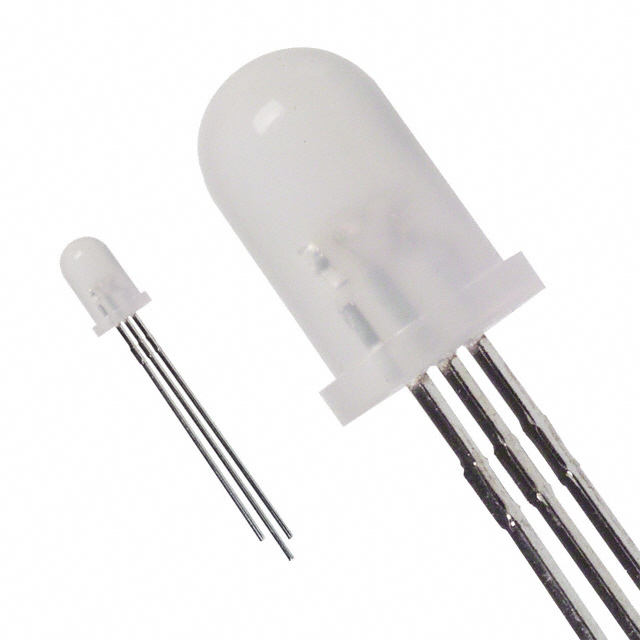

Lumex Opto/Components Inc. SSL-LX5097IGW	White	8.6 mm	Round with Domed Top	Green Red	20 mA	20 mA	20 mcd 20 mcd	60 °	2.1 V 2.1 V	Common Cathode	565 nm 635 nm	5 mm	T-1 3/4	Through Hole	Radial - 3 Leads	Diffused	T-1 3/4
Lumex Opto/Components Inc. SSL-LX5097SIUBUPGC	Colorless	8.6 mm	Round with Domed Top	Blue Green Red				50 °	2 V 3.5 V 3.5 V	Common Cathode	470 nm 525 nm 636 nm	5 mm	T-1 3/4	Through Hole	Radial	Clear	T-1 3/4	20mA Blue 20mA Green 20mA Red	800 mcd	700 mcd	800 mcd	5 mm

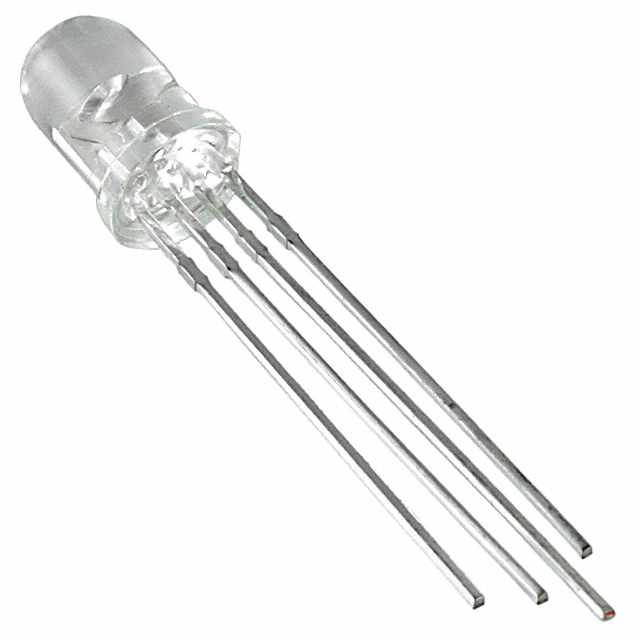

Lumex Opto/Components Inc. SSL-LX5097SISGSYC	Colorless	8.6 mm	Round with Domed Top	Green Red Yellow				50 °	2 V 2.1 V 2.2 V	Common Cathode	565 nm 585 nm 636 nm	5 mm	T-1 3/4	Through Hole	Radial	Clear	T-1 3/4		700 mcd	65 mcd			450 mcd	20 mA 20 mA 20 mA
