2392784 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

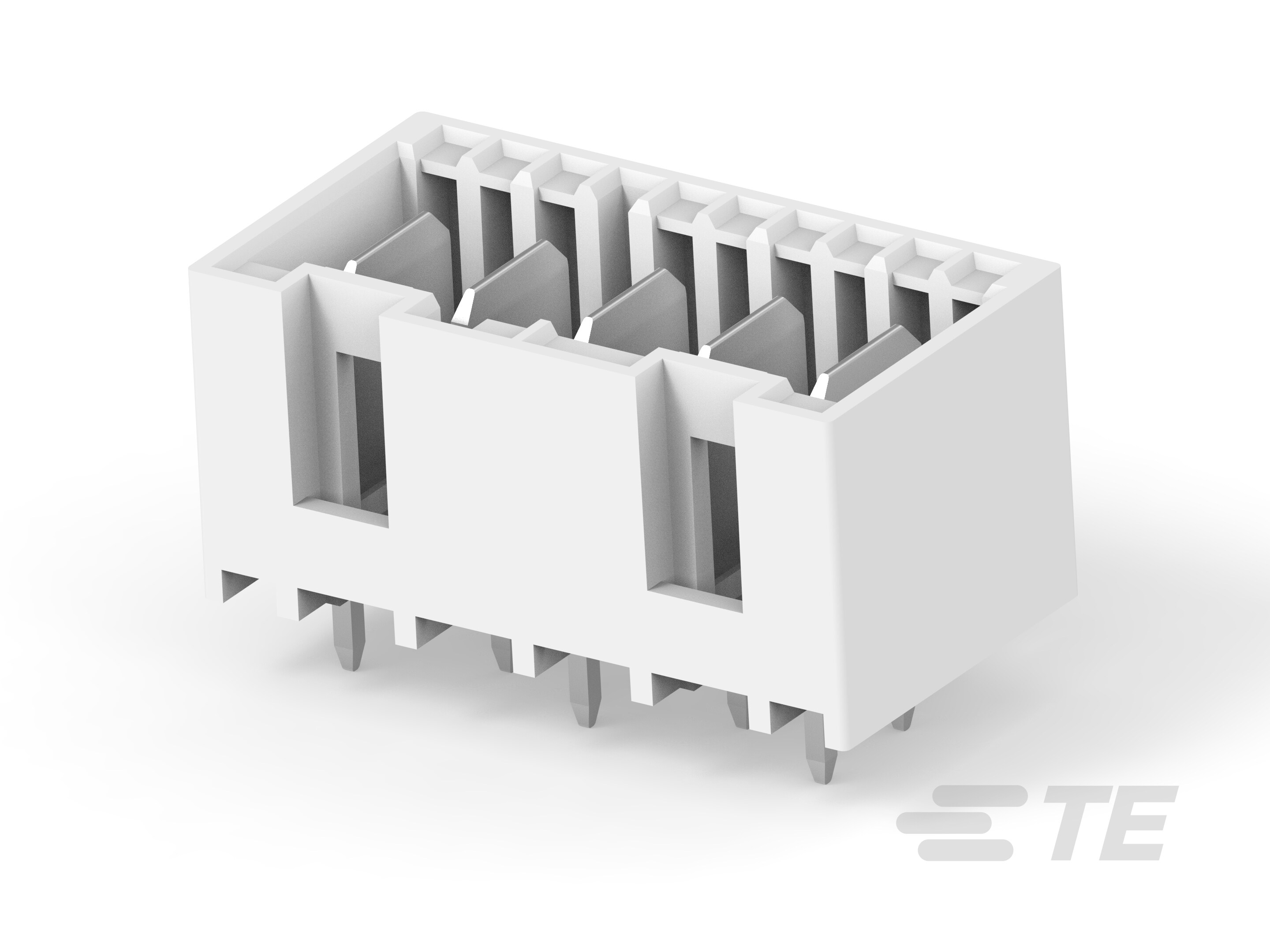

5P, RAST 5 TAB HEADER, THV
| Part | Contact Finish - Post | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Mounting Type | Features | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Type | Contact Length - Post | Contact Length - Post | Connector Type | Insulation Material | Style | Number of Positions Loaded | Shrouding | Fastening Type | Insulation Height | Insulation Height | Termination | Insulation Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | 250 VAC | 78.7 µin | 2 µm | Rectangular | Through Hole | Board Guide Glow Wire Compliant | UL94 V-0 | 2 çm | 78.7 çin | 20 A | 5 mm | 0.197 " | Tab | 3.5 mm | 0.138 in | Header | Nylon Polyamide (PA) | Board to Cable/Wire | All | Shrouded - 4 Wall | Detent Lock | 12.8 mm | 0.504 in | Solder | Natural | 1 | -40 °C | 120 °C | Copper Alloy |
