1241.2411 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

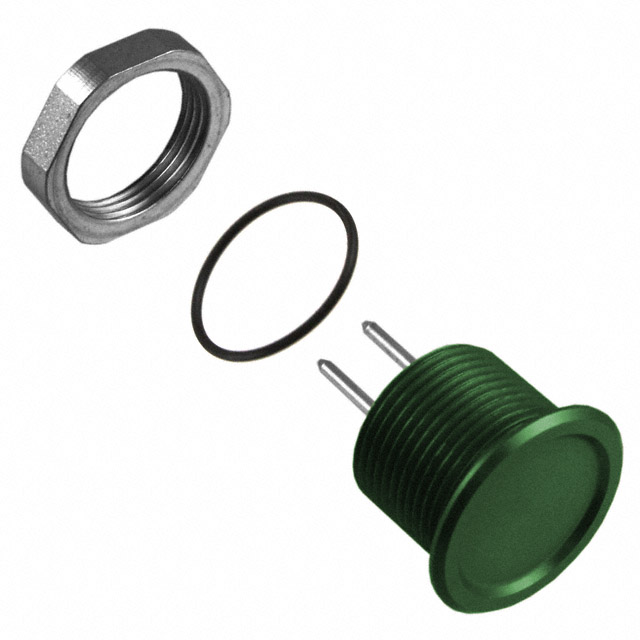

SWITCH PUSH SPST-NO 100MA 42V
| Part | Electrical Life | Actuator Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Circuit | Actuator Marking | Color - Actuator/Cap | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Type | Panel Cutout Dimensions [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 20000000 Cycles | Button Flush Round | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 100 mA | PC Pin | SPST-NO | No Marking | Green | Off-Mom | 60 VDC | 42 V | Piezo | 16.2 mm | Panel Mount Front |
 SCHURTER Inc. | 20000000 Cycles | Button Flush Round | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 100 mA | PC Pin | SPST-NO | No Marking | Gold | Off-Mom | 60 VDC | 42 V | Piezo | 16.2 mm | Panel Mount Front |
 SCHURTER Inc. | 20000000 Cycles | Button Flush Round | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 100 mA | PC Pin | SPST-NO | No Marking | Black | Off-Mom | 60 VDC | 42 V | Piezo | 16.2 mm | Panel Mount Front |
