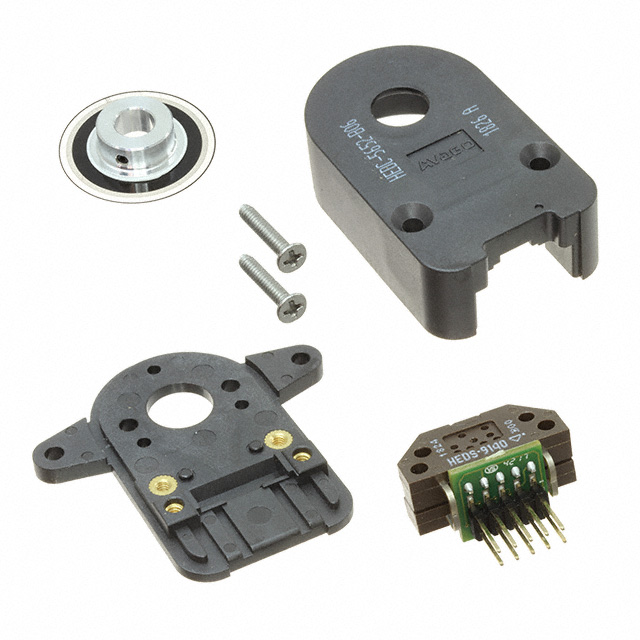

HEDC-5652 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ENCODERS Z1H,1000CPR,3CH,DIF ORI,1/4IN
| Part | Mounting Type | Built in Switch | Detent | Encoder Type | Termination Style | Actuator Type | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Pulses per Revolution | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Chassis Mount | Optical | Connector | Codewheel Not Included | Quadrature with Index (Incremental) | 5.5 V | 4.5 V | 1024 | User Selectable | ||
 Broadcom Limited | Chassis Mount | Optical | Connector | Codewheel Not Included | Quadrature with Index (Incremental) | 5.5 V | 4.5 V | 1024 |
