8469MN Series

Catalog

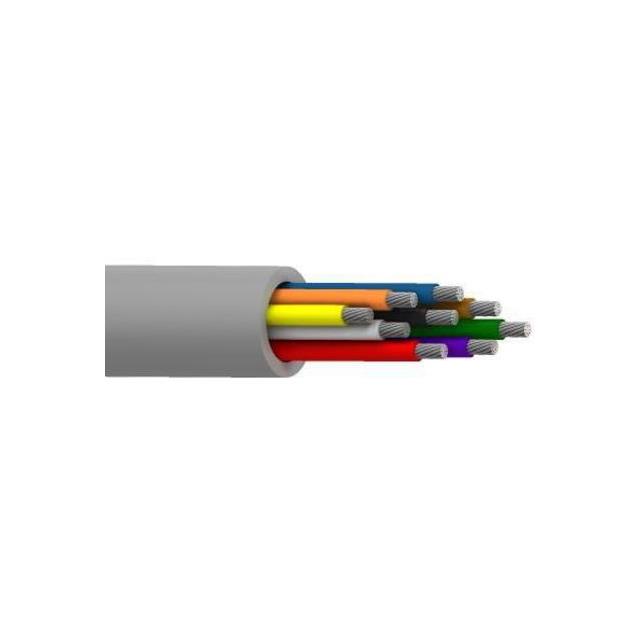

CABLE 9COND 18AWG GRAY

Part	Cable Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket Color	Conductor Insulation	Number of Conductors	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 8469MN 008100	Multi-Conductor	100 ft	30.5 m	41	34	Copper Tinned	UL Style 2937	80 °C	-20 ░C	300 VDC	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	18 AWG	Gray	Polypropylene (PP)	9	Audio Control Instrumentation	6.99 mm	0.275 in
Belden Inc. 8469MN 006100	Multi-Conductor	100 ft	30.5 m	41	34	Copper Tinned	UL Style 2937	80 °C	-20 ░C	300 VDC	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	18 AWG	Blue	Polypropylene (PP)	9	Audio Control Instrumentation	6.99 mm	0.275 in
Belden Inc. 8469MN 0041000	Multi-Conductor			41	34	Copper Tinned	UL Style 2937	80 °C	-20 ░C	300 VDC	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	18 AWG	Yellow	Polypropylene (PP)	9	Audio Control Instrumentation	6.99 mm	0.275 in	304.8 m	1000 ft
Belden Inc. 8469MN 0081000	Multi-Conductor			41	34	Copper Tinned	UL Style 2937	80 °C	-20 ░C	300 VDC	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	18 AWG	Gray	Polypropylene (PP)	9	Audio Control Instrumentation	6.99 mm	0.275 in	304.8 m	1000 ft
