9934 Series
Manufacturer: Belden Inc.
Beta
⌘K

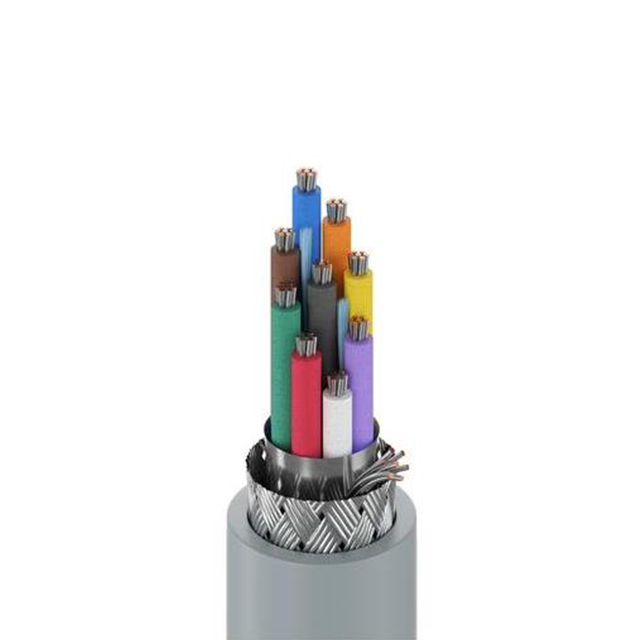

CABLE 9CON 24AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Usage | Ratings | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Features | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Cable Type | Shield Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Computer | UL Style 2919 | 24 AWG | 0.035 in | 0.889 mm | 7.62 mm | 0.3 in | 7 | 32 AWG | 152.4 m | 500 ft | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Drain Wire | 9 | 80 °C | -30 ░C | Copper Tinned | Multi-Conductor | Braid Foil | Chrome |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Computer | UL Style 2919 | 24 AWG | 0.035 in | 0.889 mm | 7.62 mm | 0.3 in | 7 | 32 AWG | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Drain Wire | 9 | 80 °C | -30 ░C | Copper Tinned | Multi-Conductor | Braid Foil | Chrome |
