1241.6963 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

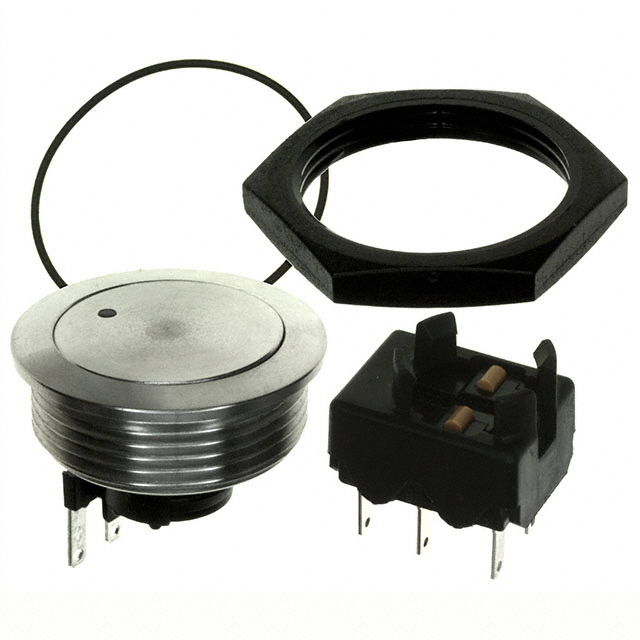

SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Actuator Type | Illumination Type, Color | Current Rating (Amps) | Actuator Marking | Ingress Protection | Circuit | Termination Style | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Voltage (Nominal) | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | Silver | Button Flush Round | Green LED | 5 A | No Marking | IP40 | DPDT | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | 85 °C | -25 °C | 125 V | 2.1 VDC | On-Mom | Panel Mount Front | 30.1 mm |
