2506-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

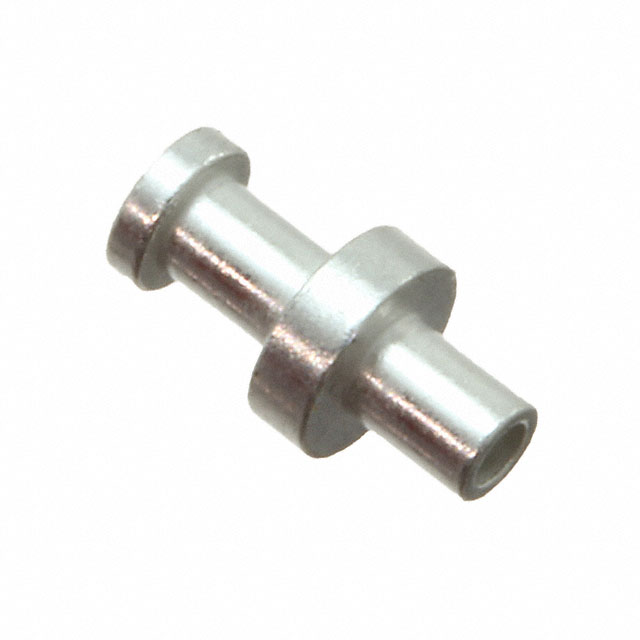

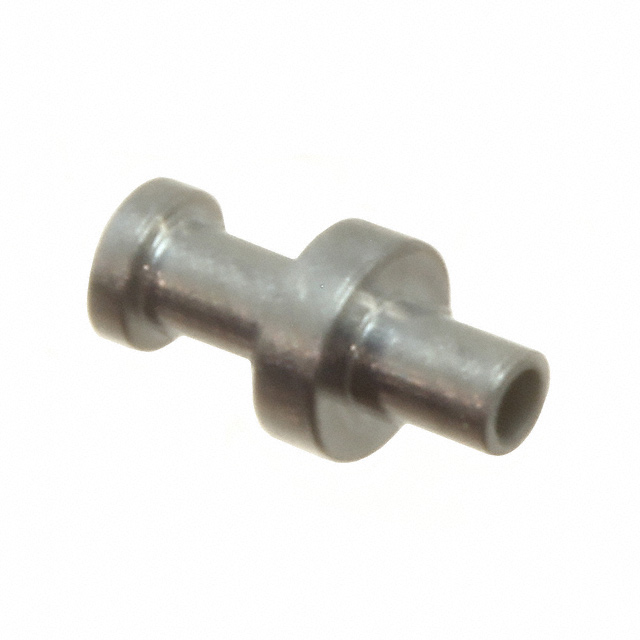

TERM TURRET SINGLE L=3.96MM
| Part | Contact Material | Board Thickness | Board Thickness | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Flange Diameter | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Insulation | Length - Overall [x] | Length - Overall | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Staking Side ID | Staking Side ID | Staking Side OD [diameter] | Staking Side OD [diameter] | Length - Above Board | Length - Above Board | Number of Turrets | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.062 in | 1.57 mm | Single End | 1.7 mm | 0.067 " | Swage | 3.18 mm | 0.125 in | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | 0.24 " | 6.1 mm | 2.36 mm | 0.093 in | 2.13 mm | 0.084 in | 0.043 in | 1.09 mm | 1.57 mm | 0.062 in | 3.96 mm | 0.156 in | Single | Tin-Lead |
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.062 in | 1.57 mm | Single End | 1.7 mm | 0.067 " | Swage | 3.18 mm | 0.125 in | 300 µin | 7.62 µm | Through Hole | Non-Insulated | 0.24 " | 6.1 mm | 2.36 mm | 0.093 in | 2.13 mm | 0.084 in | 0.043 in | 1.09 mm | 1.57 mm | 0.062 in | 3.96 mm | 0.156 in | Single | Tin-Lead |
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.062 in | 1.57 mm | Single End | 1.7 mm | 0.067 " | Swage | 3.18 mm | 0.125 in | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | 0.24 " | 6.1 mm | 2.36 mm | 0.093 in | 2.13 mm | 0.084 in | 0.043 in | 1.09 mm | 1.57 mm | 0.062 in | 3.96 mm | 0.156 in | Single | Tin |
