KSW30B Series

Catalog

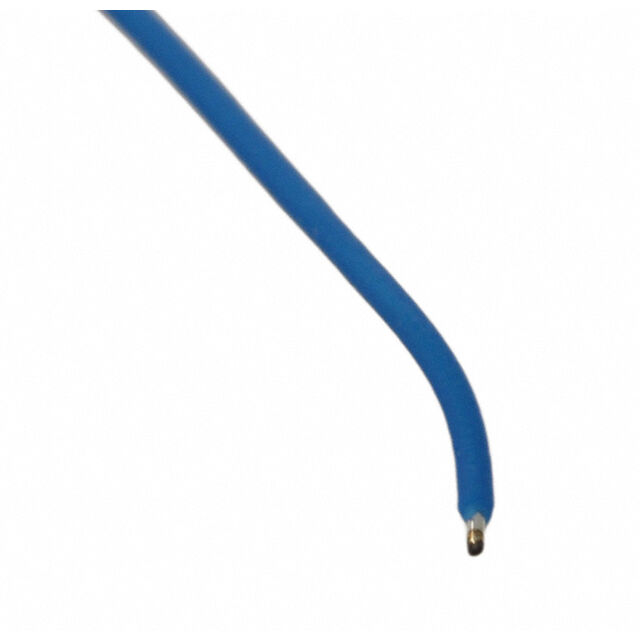

WIRE WW 30AWG PVDF BLUE 1000'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Material	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Wire Gauge	Conductor Plating
Jonard Tools KSW30B-1000	0.09 mm	0.004 in	304.8 m	1000 ft	Copper Bare	0.01 in	0.25 mm	Blue	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	UL Style 1423	30 AWG	Silver
Jonard Tools KSW30B-0100	0.09 mm	0.004 in	30.5 m	100 '	Copper Bare	0.01 in	0.25 mm	Blue	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	UL Style 1423	30 AWG	Silver

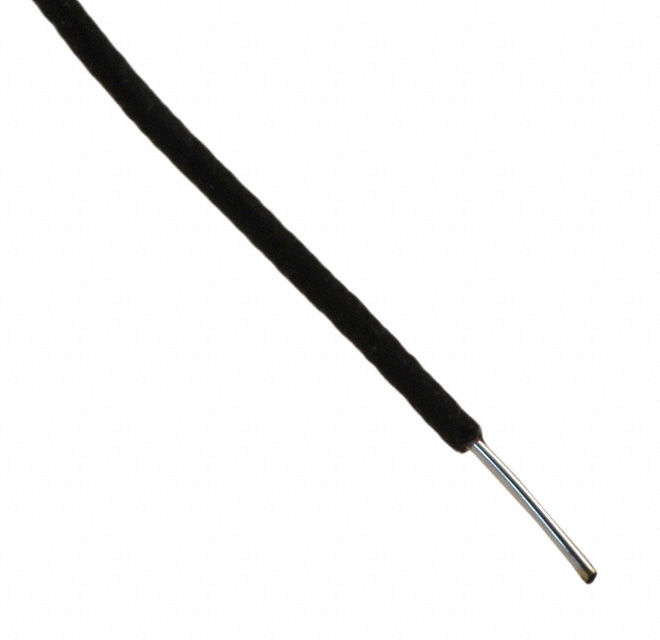

Jonard Tools KSW30BLK-1000	0.09 mm	0.004 in	304.8 m	1000 ft	Copper Bare	0.01 in	0.25 mm	Black	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	UL Style 1423	30 AWG	Silver
Jonard Tools KSW30BLK-0100	0.09 mm	0.004 in	30.5 m	100 '	Copper Bare	0.01 in	0.25 mm	Black	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	UL Style 1423	30 AWG	Silver
