2327679 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

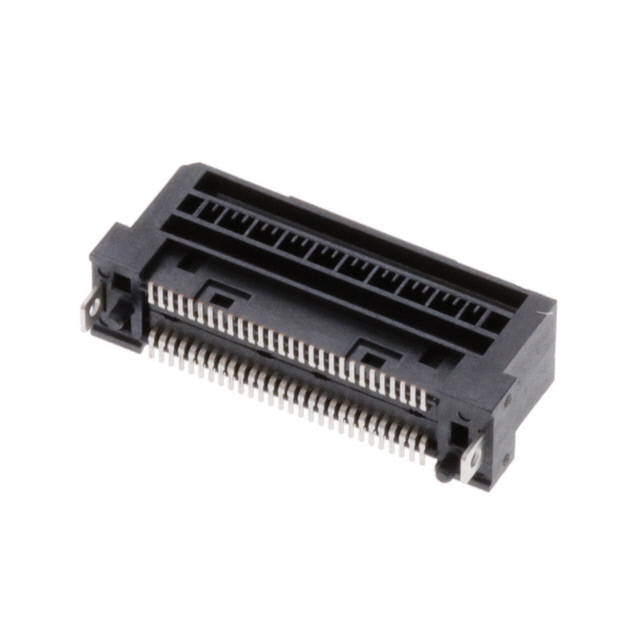

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, PCB MOUNT, STRAIGHT
| Part | Number of Positions | Number of Positions/Bay/Row [custom] | Termination | Contact Material | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Card Thickness | Card Thickness | Mounting Type | Material - Insulation | Features | Contact Finish Thickness | Contact Finish Thickness | Read Out | Pitch [x] | Pitch [x] | Gender | Number of Rows | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 56 | 28 | Solder | Copper Alloy | Gold | 85 °C | -55 °C | Black | 0.062 in | 1.57 mm | Surface Mount | Liquid Crystal Polymer (LCP) | Board Guide Pick and Place Cap Solder Retention | 15 µin | 0.38 µm | Dual | 0.6 mm | 0.024 in | Female | 2 | Non Specified - Dual Edge |
