55.32.9 Series

Catalog

RELAY GEN PURPOSE DPDT 10A 24V

Part	Coil Resistance	Must Operate Voltage	Must Release Voltage	Coil Current	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Voltage	Mounting Type	Features	Switching Voltage [Max]	Load - Max Switching [Max]	Contact Material	Coil Type	Termination Style	Operate Time	Release Time	Relay Type	Approval Agency
Finder Relays, Inc. 55.32.9.024.0080	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable	Diode Lighted Indicator	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.012.0070	140 Ohms	9.6 VDC	2.4 VDC	86 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	12 VDC	Socketable	Lighted Indicator Test Button	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.220.0000	54 kOhms	176 VDC	44 VDC	4 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	220 VDC	Socketable		400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.024.5000	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable		400 VAC	4000 VA	Gold (Au) Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.012.0094	140 Ohms	9.6 VDC	2.4 VDC	86 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	12 VDC	Socketable	Diode Lighted Indicator Mechanical Indicator Test Button	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.110.0040	12.5 kOhms	88 VDC	22 VDC	8.8 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	110 VDC	Socketable	Mechanical Indicator Test Button	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.024.0070	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable	Lighted Indicator Test Button	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE

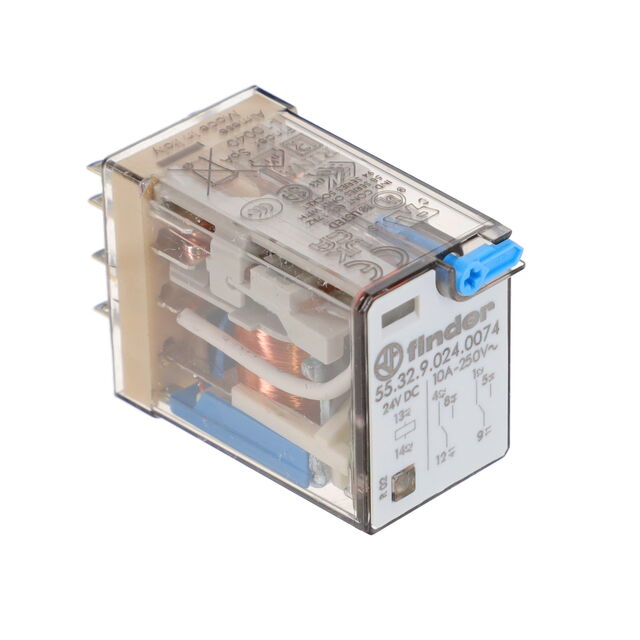

Finder Relays, Inc. 55.32.9.024.0074	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable		400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.024.0090	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable	Diode Lighted Indicator Test Button	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
Finder Relays, Inc. 55.32.9.024.0060	600 Ohms	19.2 VDC	4.8 VDC	40 mA	10 A	85 °C	-40 C	DPDT (2 Form C)	24 VDC	Socketable	Lighted Indicator	400 VAC	4000 VA	Silver Nickel (AgNi)	Non Latching	Plug In	10 ms	5 ms	General Purpose	CCC CE CSA cURus EAC ENEC RINA UKCA VDE
