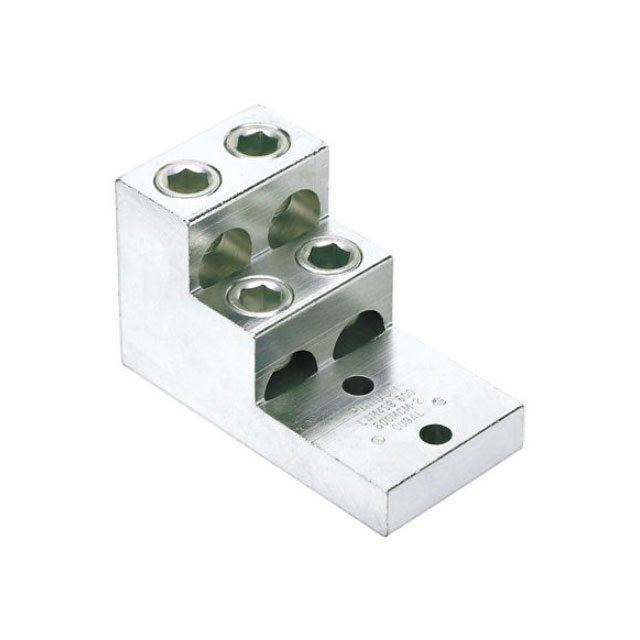

LAM4SB Series
Manufacturer: Panduit Corp
Beta
⌘K
CONN TERM RECT LUG 2 AWG #3/8
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Stud/Tab Size | Contact Finish | Termination | Wire Gauge | Wire Gauge | Insulation | Terminal Style | Features | Features | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 14.99 mm | 0.59 " | Grounding Lug | 124.71 mm | 4.91 in | 19.05 mm | 0.75 in | 3/8 Stud | Tin | Screw | 600 kcmil | 2 AWG | Non-Insulated | Two Stud Holes | 4 Cable Entries | With Screw | 62.74 mm | 2.47 in | Free Hanging (In-Line) | Aluminum |
