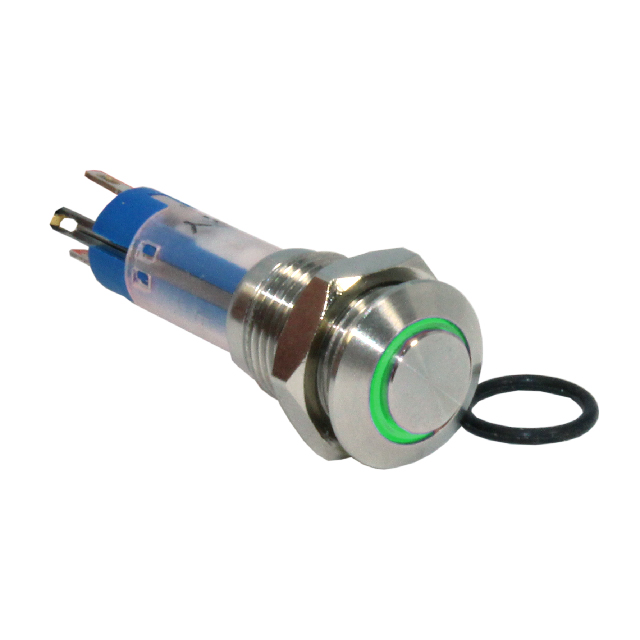

GHLESB Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPST 2A 48V
| Part | Mechanical Life | Electrical Life | Illumination Type, Color | Type | Circuit | Mounting Type | Termination Style | Voltage Rating - DC | Features | Switch Function | Current Rating (Amps) | Actuator Marking | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 100000 Cycles | 50000 Cycles | Green LED | Anti-Vandal Illuminated | SPST | Panel Mount Front | Solder Lug | 48 V | Stainless Steel | On-Off | 2 A | No Marking | Silver | 10 mm | 55 °C | -25 °C | IP40 | Button Round |
 CIT Relay and Switch | 100000 Cycles | 50000 Cycles | Blue LED | Anti-Vandal Illuminated | SPST | Panel Mount Front | Solder Lug | 48 V | Stainless Steel | On-Off | 2 A | No Marking | Silver | 10 mm | 55 °C | -25 °C | IP40 | Button Round |
